| Overview | |
|---|---|
| Product Name | GDM-49-HC-LD VWR WHT CHROMO |
| VWR Catalog No | 10791-624 |
| Manufacturer | True Refrigeration |
| Capacity | 1388 L (49 cu. ft.) |
| Door Type | 2 self-closing "Low-E" double-pane thermal glass swing doors |
| Shelves | 8 adjustable full-size PVC-coated wire shelves (24 9/16" L x 22 1/8" D) |
| Interface & Controls | Electronic controller with exterior digital temperature display and alarm function |
| Lighting | Safety-shielded interior LED lighting |
| Mounting | Frame rail fitted with leg levelers (optional castors or legs available) |
| General Warranty | Three-year parts and labor warranty |
| Compressor Warranty | Two-year additional compressor warranty |
| Certifications | cULus Listed, UL Listed, NSF Certified, Environmentally Preferable (Safer Human & Environmental Health, Energy Efficient) |
| Physical Dimensions & Weight | |
| Exterior Width | 54.125" (1375 mm) |
| Exterior Depth | 29.875" (759 mm) *Depth excludes 1.125" (29 mm) for door handles |
| Exterior Height | 78.625" (1998 mm) |
| Crated Weight | 497 lbs |
| Performance & Electrical Details | |
| Operating Temperature Range | 2°C to 8°C (35.6°F to 46.4°F) |
| Compressor Power | 1/2 HP |
| Refrigerant | Environmentally friendly natural R290 Hydrocarbon refrigerant |
| Electrical Requirements | 115V / 60 Hz / 1 Phase, 8.5 Amps (Rated 5.8 A) |
| Power Plug | NEMA 5-15P plug with 9 ft. (2.74 m) cord |
New
VWR GDM-49-HC-LD VWR WHT CHROMO Basic Glass Door Refrigerator, Natural Refrigerant White Swing Doors, 49 cu. ft.
SKU: GDM-49-HC-LD VWR WHT CHROMO
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
VWR GDM-49-HC-LD VWR WHT CHROMO Basic Glass Door Refrigerator, NSF-Approved Interior Construction, Natural Refrigerant White Swing Doors, 49 cu. ft., Durable White Vinyl Exterior

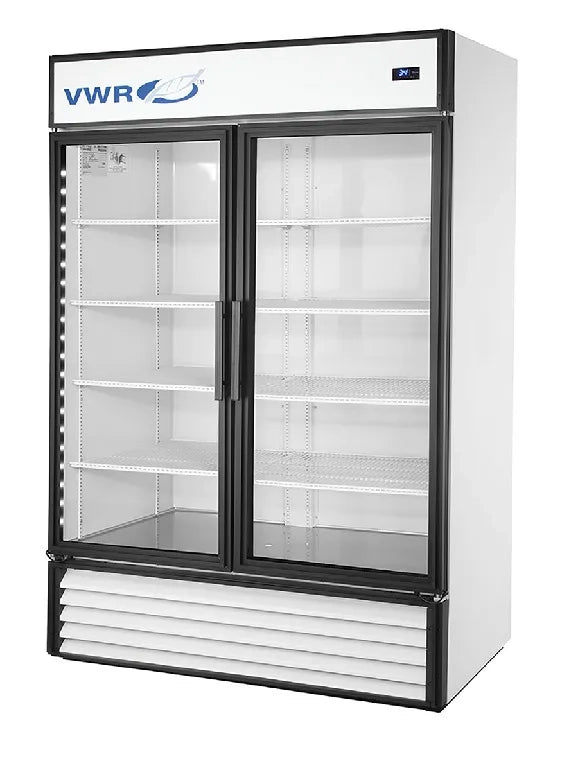

The VWR Basic Glass Door Refrigerator (Catalog No: 10791-624 / Model: GDM-49-HC-LD VWR WHT CHROMO), manufactured by True Refrigeration, is a high-capacity double-door laboratory refrigerator engineered for general scientific, clinical, and industrial storage applications. Combining eco-friendly technology, precise temperature recovery, and a spacious dual-door layout, this 49 cubic foot (1388 L) upright cabinet delivers dependable cold storage for high-volume samples, reagents, and media.
Constructed for daily laboratory use, the exterior features a non-peel, non-chip white laminated vinyl finish that maintains a clean aesthetic. The interior liner is made of NSF-approved white aluminum, complemented by a heavy-duty stainless steel floor for superior protection against accidental spills and wear. The cabinet structure is foamed-in-place using Ecomate high-density polyurethane insulation with zero Ozone Depletion Potential (ODP) and zero Global Warming Potential (GWP). A heavy-duty, black powder-coated welded steel frame rail with built-in levelers ensures structural integrity and long-term corrosion resistance.
The cabinet is fitted with two "Low-E" double-pane thermal insulated glass swing doors set in extruded aluminum frames. Operating on a positive-seal torsion closure system, the self-closing doors prevent heat gain during frequent opening. Each door features an integrated 12" (305 mm) handle and a tool-free removable magnetic gasket for effortless cleaning. Safety-shielded interior LED lighting delivers bright, uniform illumination across all storage levels.
Interior organization includes eight adjustable, heavy-duty PVC-coated white wire full-size shelves supported by interior pilasters adjustable in 1/2" increments. A convenient clean-out drain is built directly into the cabinet floor to facilitate routine sanitation.
Refrigeration performance is driven by a factory-engineered, self-contained capillary tube system utilizing eco-friendly R290 hydrocarbon refrigerant (0 ODP, 3 GWP). Powered by a bottom-mounted 1/2 HP compressor with an extra-large evaporator coil and sealed, self-lubricating fan motors, the unit creates a low-velocity, high-volume airflow for rapid temperature pull-down and consistent holding between 2°C and 8°C (35.6°F to 46.4°F). An electronic temperature controller with an exterior digital display and alarm function allows for continuous monitoring and sample protection.
Features:
- High-Capacity Swing Glass Doors: Features two self-closing "Low-E" double-pane thermal insulated glass swing doors with extruded aluminum frames and positive-seal torsion closures.
- NSF-Approved Interior Construction: Bright white aluminum interior liner with a heavy-duty stainless steel floor for clean, professional storage and spill resistance.
- Eco-Friendly Natural Refrigerant: Powered by R290 hydrocarbon refrigerant with zero (0) ODP and three (3) GWP for maximum energy efficiency and environmental safety.
- Durable White Vinyl Exterior: Non-peel or chip white laminated vinyl finish provides a permanent, sleek, and easy-to-maintain laboratory exterior.
- Electronic Temperature Control: Exterior digital display and integrated alarm system deliver continuous thermal monitoring and user alerts.
- High-Volume Airflow System: Sealed, self-lubricating fan motor paired with an extra-large evaporator coil delivers rapid temperature pull-down and uniform cooling.
- Generous Adjustable Shelving: Includes eight heavy-duty PVC-coated white wire shelves adjustable in 1/2" increments with chrome-plated shelf clips.
- Safety-Shielded LED Lighting: Interior LED lighting ensures uniform, bright visibility throughout both door compartments.
- Foamed-in-Place Insulation: Cabinet foamed-in-place using Ecomate high-density polyurethane insulation for maximum thermal preservation.
- Solid Warranty Coverage: Backed by a 3-year parts and labor warranty with an additional 2-year warranty on the compressor.
Specifications:
