| Overview | |
|---|---|
| Product Name | GDM-72-HC-LD VWR WHT/SS CHROMO |
| VWR Catalog No | 10018-866 |
| Manufacturer | True Refrigeration |
| Capacity | 2039 L (72 cu. ft.) |
| Door Type | 3 self-closing "Low-E" double-pane thermal glass swing doors |
| Shelves | 12 adjustable full-size PVC-coated wire shelves (24 1/8" L x 20 3/4" D) |
| Interface & Controls | Electronic controller with exterior digital temperature display and alarm function |
| Lighting | Safety-shielded interior LED lighting |
| Mounting | Frame rail fitted with leg levelers (optional castors or legs available) |
| General Warranty | Three-year parts and labor warranty |
| Compressor Warranty | Two-year additional compressor warranty |
| Certifications | cULus Listed, UL Listed, NSF/ANSI Standard 7 Certified, Natural Refrigerant, Environmentally Preferable (Safer Human & Environmental Health, Low Manufacturing Impact, Energy Efficient), GSA Advantage Available |
| Physical Dimensions & Weight | |
| Exterior Width | 78.125" (1985 mm) |
| Exterior Depth | 29.875" (759 mm) *Depth excludes 1.375" (35 mm) for door handles |
| Exterior Height | 78.625" (1998 mm) |
| Crated Weight | 630 lbs |
| Performance & Electrical Details | |
| Operating Temperature Range | 2°C to 8°C (35.6°F to 46.4°F) |
| Compressor Power | 1/2 HP |
| Refrigerant | Environmentally friendly natural R290 Hydrocarbon refrigerant |
| Electrical Requirements | 115V / 60 Hz / 1 Phase, 8.5 Amps (Rated 7.1 A) |
| Power Plug | NEMA 5-15P plug with 9 ft. (2.74 m) cord |

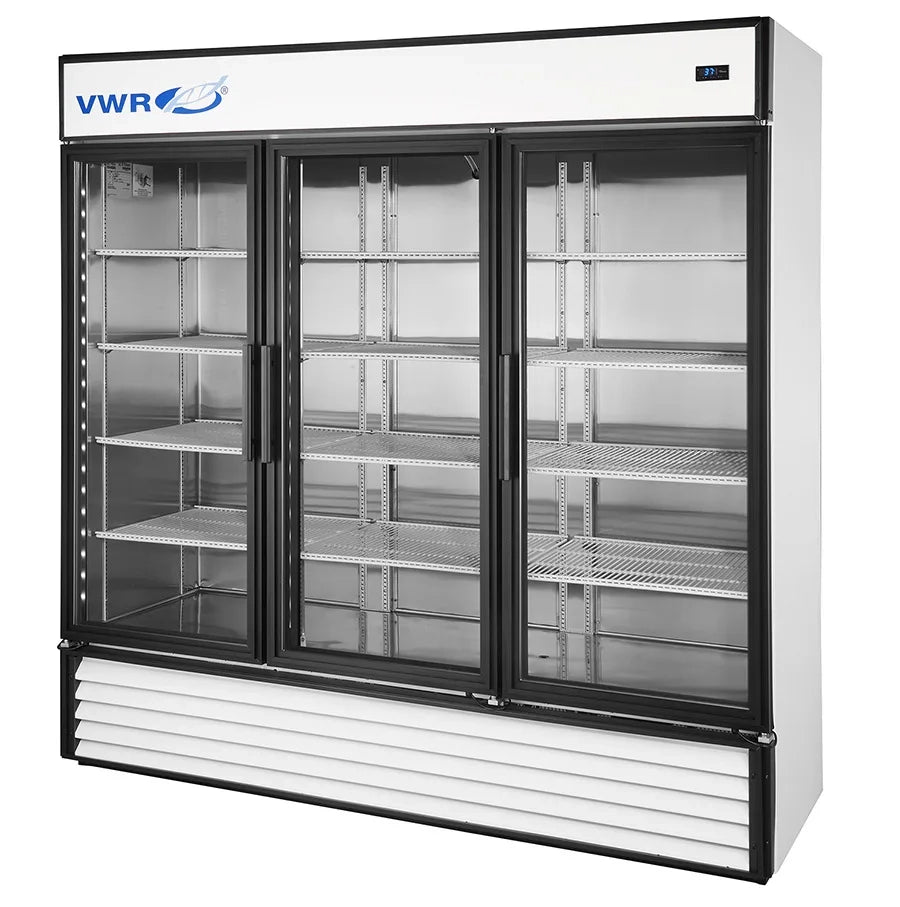

VWR GDM-72-HC-LD VWR WHT/SS CHROMO Basic Glass Door Refrigerator, Natural Refrigerant White Exterior Stainless Steel, 72 cu. ft.
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
VWR GDM-72-HC-LD VWR WHT/SS CHROMO Basic Glass Door Refrigerator, Natural Refrigerant White Exterior Stainless Steel Interior Swing Doors, 72 cu. ft., High-Volume Airflow System
The VWR Basic Glass Door Refrigerator (Catalog No: 10018-866 / Model: GDM-72-HC-LD VWR WHT/SS CHROMO), manufactured by True Refrigeration, is a maximum-capacity triple-door laboratory refrigerator designed for large-scale scientific, clinical, and industrial storage applications. Featuring a premium stainless steel interior, natural hydrocarbon refrigeration, and superior thermal preservation, this 72 cubic foot (2039 L) upright cabinet delivers long-lasting durability and precise sample protection for high-volume lab workflows.
Engineered for demanding daily laboratory use, the exterior is finished with non-peel, non-chip white laminated vinyl that maintains a permanent, professional appearance. The interior cabinet is lined entirely with high-tensile strength stainless steel, offering exceptional resistance against dents, scratches, and aggressive chemical spills. High-density polyurethane insulation foamed-in-place throughout the cabinet structure provides maximum thermal retention with zero Ozone Depletion Potential (ODP) and zero Global Warming Potential (GWP). A heavy-duty, black powder-coated welded steel frame rail equipped with leg levelers ensures structural integrity and long-term corrosion resistance.
The cabinet is fitted with three "Low-E" double-pane thermal insulated glass swing doors set in extruded aluminum frames. Operating on a positive-seal torsion closure system, the self-closing doors prevent heat gain during frequent access. Each door features an integrated 12" (305 mm) extruded handle and a tool-free removable magnetic gasket for effortless cleaning and sanitation. Safety-shielded interior LED lighting delivers bright, uniform illumination across all cabinet compartments.
Interior storage organization includes twelve adjustable, heavy-duty PVC-coated white wire full-size shelves supported by stainless steel pilasters adjustable in 1/2" increments. A convenient clean-out drain is built directly into the cabinet floor to facilitate routine maintenance.
Refrigeration performance is driven by a factory-engineered, self-contained capillary tube system utilizing eco-friendly R290 hydrocarbon refrigerant (0 ODP, 3 GWP). Powered by a bottom-mounted 1/2 HP compressor with extra-large evaporator coils and sealed, cast iron self-lubricating fan motors, the system creates a low-velocity, high-volume airflow for rapid temperature pull-down and consistent holding between 2°C and 8°C (35.6°F to 46.4°F). An electronic temperature controller with an exterior digital display and integrated alarm function allows for continuous thermal monitoring and immediate alert tracking.
Features:
- Premium Stainless Steel Interior: High-tensile strength stainless steel interior liner and floor offer maximum protection against dents, scratches, and chemical spills.
- Triple-Door Storage Capacity: Massive 72 cubic foot (2039 L) capacity with three self-closing "Low-E" double-pane thermal glass swing doors with extruded aluminum frames.
- Eco-Friendly Natural Refrigerant: Powered by R290 hydrocarbon refrigerant with zero (0) ODP and three (3) GWP for maximum energy efficiency and environmental compliance.
- Durable White Vinyl Exterior: Non-peel or chip white laminated vinyl finish provides a permanent, sleek, and easy-to-clean laboratory exterior.
- Electronic Temperature Control: Exterior digital display and integrated alarm system deliver continuous thermal tracking and immediate user alerts.
- High-Volume Airflow System: Sealed, self-lubricating fan motors paired with an extra-large evaporator coil deliver rapid temperature recovery and uniform cabinet cooling.
- Generous Adjustable Shelving: Includes twelve heavy-duty PVC-coated white wire shelves adjustable in 1/2" increments with chrome-plated shelf clips.
- Safety-Shielded LED Lighting: Interior LED lighting ensures uniform, bright visibility throughout all three cabinet compartments.
- Ergonomic Bottom-Mount Design: Bottom-mounted compressor raises the lower shelf level to eliminate stooping while maximizing sample visibility.
- Solid Warranty Coverage: Backed by a 3-year parts and labor warranty with an additional 2-year warranty on the compressor.
