| Overview | |
|---|---|
| Product Name | VWR Plus Series Refrigerator Freezer Combo Unit |
| VWR Catalog No | 76488-178 |
| Model Code | HCRFC1020 |
| Supplier | VWR International |
| Total Capacity | 9.2 cu. ft. total (5.2 cu. ft. / 147 L Refrigerator; 4.0 cu. ft. / 113 L Freezer) |
| Door Type | 2 solid swing doors (1 refrigerator, 1 freezer) |
| Defrost System | Cycle defrost (Refrigerator); Manual defrost (Freezer) |
| Shelves | 3 adjustable shelves (Refrigerator); 2 fixed shelves + 1 bottom footed shelf (Freezer) |
| Control System | Dual microprocessor controllers with exterior digital displays |
| Security | Keyed door locks on both doors |
| Alarms | Audible and visual high/low temperature alarms, remote alarm contacts |
| Probes | Dual probes (1 air probe, 1 sample bottle probe) |
| Probe Access | 3/8" probe access port |
| Lighting | Interior LED light (Refrigerator compartment) |
| Cabinet Exterior | White powder-coated cabinet and doors |
| Insulation | High-density urethane foam cabinet and door insulation |
| Mounting & Setup | Leveling legs and stacking kit included |
| General Warranty | Two-year parts and labor warranty |
| Compressor Warranty | Three-year additional compressor parts warranty |
| Certifications & Compliance | UL/C-UL Listed, HFC-free, Environmentally Preferable (Safer Human & Environmental Health, Energy Efficient) |
| Physical Dimensions & Weight | |
| Exterior Dimensions (W x D x H) | 23.75" x 24.00" x 65.00" (603 x 610 x 1651 mm) |
| Refrigerator Interior Dimensions (W x D x H) | 19.875" x 16.00" x 26.75" (505 x 406 x 679 mm) |
| Freezer Interior Dimensions (W x D x H) | 19.00" x 16.00" x 26.00" (483 x 406 x 660 mm) |
| Required Clearance | 4" clearance on sides and back for adequate ventilation |
| Shipping Weight | 121 kg (266 lbs.) |
| Performance & Electrical Details | |
| Refrigerator Operating Temperature | 2°C to 8°C |
| Freezer Operating Temperature | -15°C to -25°C (-20°C nominal) |
| Compressor Power | 1/6 HP (Refrigerator); 1/8 HP (Freezer) |
| Refrigerant | Natural R600a Hydrocarbon refrigerant (HFC-free) |
| Electrical Requirements | 115 V / 60 Hz; 1.6 A (Refrigerator), 1.4 A (Freezer) |
New
VWR HCRFC1020 Plus Series Refrigerator Freezer Combo Unit Dual Microprocessor Keyed Lock, 5.2 cu. ft. Refrigerator, 4 cu. ft. Freezer
SKU: HCRFC1020
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
VWR HCRFC1020 Plus Series Refrigerator Freezer Combo Unit Dual Microprocessor Keyed Lock, 5.2 cu. ft. Refrigerator, 4 cu. ft. Freezer, Dual Temperature Storage, Organized Interior Storage

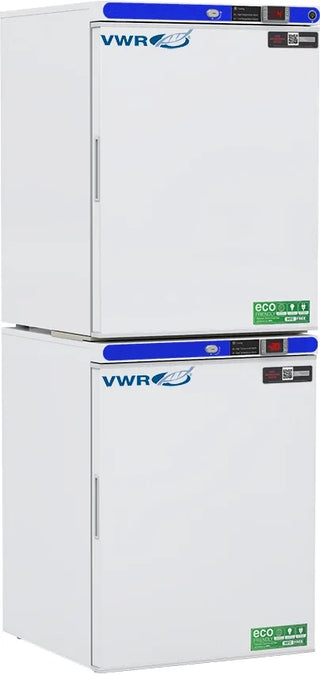

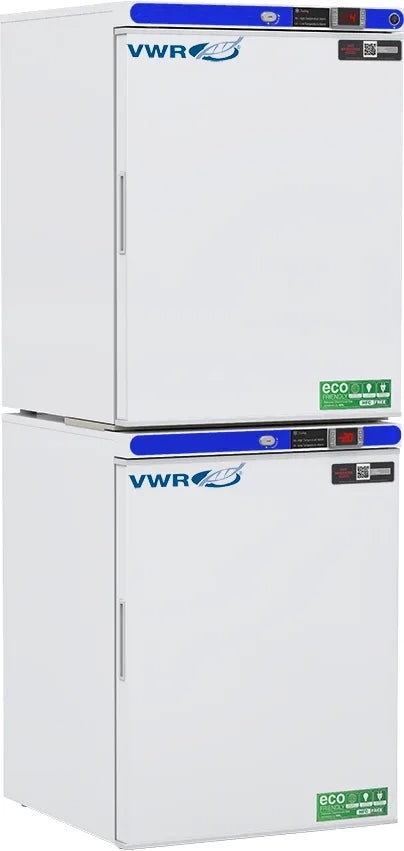

The VWR Plus Series Freestanding Refrigerator Freezer Combination Unit (Catalog No: 76488-178 / Model: HCRFC1020), supplied by VWR International, is a high-performance dual-temperature cold storage solution engineered for laboratory settings requiring simultaneous refrigerated and frozen sample storage. Combining a 5.2 cubic foot (147 L) refrigerator compartment with a 4.0 cubic foot (113 L) freezer compartment, this space-saving freestanding cabinet delivers precise temperature control, robust security, and eco-friendly performance.
Designed for versatile scientific and clinical applications, the unit features a dual-door setup consisting of two solid swing doors with recessed door handles, magnetic gaskets for positive sealing, and independent keyed door locks to secure stored materials. The durable white cabinet structure is insulated with high-density urethane foam and equipped with leveling legs and a stacking kit setup for maximum structural stability.
Temperature management is driven by independent microprocessor controllers paired with digital displays for both compartments. The upper refrigerator compartment operates within a 2°C to 8°C range utilizing forced draft air circulation and an automated cycle defrost mechanism. The lower freezer compartment maintains temperatures between -15°C and -25°C (-20°C nominal) with a manual defrost design to preserve sample stability without temperature spikes. Both compartments feature comprehensive monitoring with audible/visual high and low temperature alarms, dual sensing probes (air probe and sample bottle probe), remote alarm contacts, and a 3/8" probe access port.

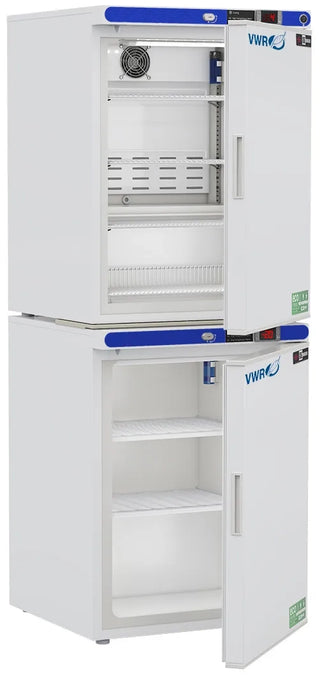

Interior storage includes three adjustable shelves in the refrigerator compartment and two fixed shelves plus a bottom footed shelf in the freezer compartment to ensure uninterrupted air circulation. Interior LED lighting illuminates the refrigerator space for rapid inventory access. Powered by natural HFC-free R600a hydrocarbon refrigerant, this system minimizes energy usage while upholding rigorous laboratory safety standards.
Features:
- Dual Temperature Storage: Integrates a 5.2 cu. ft. refrigerator (2°C to 8°C) and a 4.0 cu. ft. freezer (-15°C to -25°C) in a compact freestanding footprint.
- Independent Microprocessor Controllers: Features separate digital controls and temperature displays for precise management of each compartment.
- Comprehensive Dual-Probe Alarm System: Equipped with audible/visual high and low temperature alarms, dual probes (air and sample bottle), remote alarm contacts, and a 3/8" probe access port.
- Independent Keyed Door Locks: Both solid swing doors feature physical keyed locks for dual-compartment sample security.
- Optimized Defrosting Systems: Automated cycle defrost for the refrigerator section and manual defrost for the freezer section to eliminate temperature spikes.
- Eco-Friendly R600a Refrigerant: Operates on natural, HFC-free hydrocarbon refrigerant for energy-efficient, environmentally conscious operation.
- Organized Interior Storage: Features 3 adjustable shelves in the refrigerator compartment and 2 fixed shelves with a bottom footed shelf in the freezer compartment.
- Safety & Compliance: UL and C-UL listed design backed by a 2-year parts and labor warranty plus a 3-year additional compressor parts warranty.
Specifications:
