| Overview | |
|---|---|
| Product Name | VWR Reach-In Solid Door Refrigerator |
| VWR Catalog No | 10791-630 |
| True Model | T-23-HC NC-VWR |
| Manufacturer | True Refrigeration / VWR International |
| Capacity | 651 L (23 cu. ft.) |
| Door Type | 1 self-closing solid stainless steel swing door (Right hinged) |
| Door Lock | Standard keyed door lock |
| Shelves | 3 adjustable PVC-coated wire shelves (22 7/8" L x 23 1/4" D) |
| Interface & Controls | LAE electronic control with exterior digital display and alarm function |
| Lighting | Safety-shielded interior LED lighting (rocker switch controlled) |
| Mobility | 4" (102 mm) diameter stem castors (front set locking) |
| General Warranty | Three-year parts and labor warranty |
| Compressor Warranty | Two-year additional compressor warranty |
| Certifications | C-UL US Listed, UL Listed, NSF Certified, Natural Refrigerant, Environmentally Preferable (Safer Human & Environmental Health, Low Manufacturing Impact, Energy Efficient), GSA Advantage Available |
| Physical Dimensions & Weight | |
| Exterior Width | 27.000" (686 mm) |
| Exterior Depth | 29.500" (750 mm) |
| Exterior Height | 78.375" (1991 mm) *Height excludes 5" (127 mm) for castors |
| Crated Weight | 127 kg (280 lbs.) |
| Performance & Electrical Details | |
| Operating Temperature Range | 0.5°C to 3.3°C (33°F to 38°F) |
| Compressor Power | 1/5 HP |
| Refrigerant | Natural R290 Hydrocarbon refrigerant (0 ODP, 3 GWP) |
| Electrical Requirements | 115 V / 60 Hz / 1 Phase, 3.0 A (Rated 2.2 A) |
| Power Plug | NEMA 5-15P plug with 9 ft. (2.74 m) cord |
New
VWR T-23-HC NC-VWR Reach-In Solid Door Laboratory Refrigerator, Stainless Steel Exterior Keyed Lock, 23 cu. ft.
SKU: T-23-HC NC-VWR
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
VWR T-23-HC NC-VWR Reach-In Solid Door Laboratory Refrigerator, NSF-Approved Interior, Stainless Steel Exterior Keyed Lock, 23 cu. ft., Eco-Friendly R290 Hydrocarbon Refrigerant

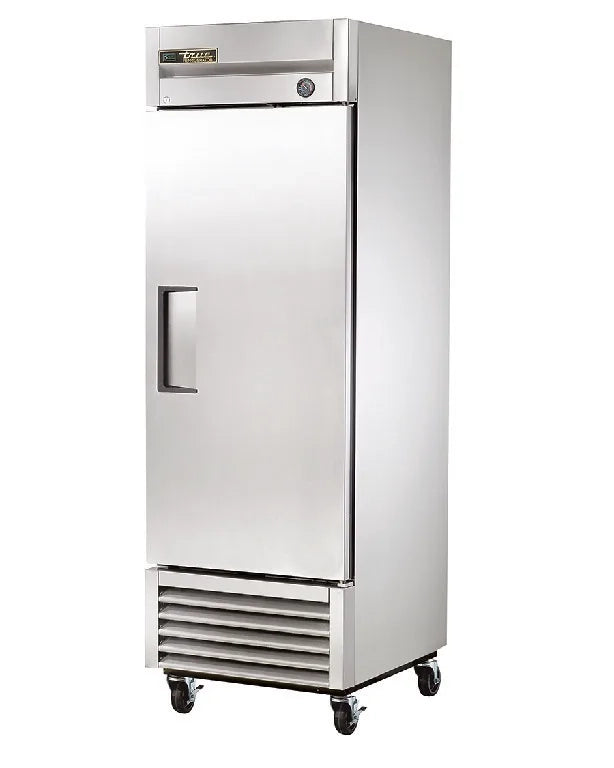

The VWR Reach-In Solid Door Refrigerator (Catalog No: 10791-630 / Model: T-23-HC NC-VWR), manufactured by True Refrigeration, is a heavy-duty, commercial-grade upright reach-in refrigerator designed for demanding scientific, laboratory, and industrial applications. Delivering 23 cubic feet (651 L) of storage, this unit features a high-tensile stainless steel exterior front, an eco-friendly hydrocarbon refrigeration system, and precise thermal control for dependable cold preservation.
Built with enduring quality to withstand heavy daily usage, the exterior features a solid stainless steel front with high tensile strength to minimize dents and scratches, paired with anodized quality aluminum ends, back, and top. The interior is lined with an NSF-approved clear coated aluminum liner and a durable stainless steel floor with coved corners for quick sanitation. The entire cabinet structure and solid door are foamed-in-place using Ecomate—a high-density polyurethane insulation with zero Ozone Depletion Potential (ODP) and zero Global Warming Potential (GWP). The cabinet is supported by a heavy-duty, black powder-coated welded steel frame rail equipped with 4" (102 mm) diameter swivel castors (locks provided on front set).
The unit is fitted with a single self-closing, solid stainless steel swing door featuring a lifetime-guaranteed recessed door handle foamed-in-place with a sheet metal interlock. A positive-seal torsion closure system and a one-piece magnetic door gasket (removable without tools) ensure thermal tightness. Standard keyed door locks provide physical access control for sensitive stored materials.
Interior organization includes three adjustable, heavy-duty PVC-coated wire shelves (22 7/8" L x 23 1/4" D) supported by pilasters adjustable in 1/2" (13 mm) increments, complete with four chrome-plated shelf clips per shelf. Safety-shielded interior LED lighting is controlled via a rocker switch mounted above the door.
Refrigeration is powered by a factory-engineered, self-contained capillary tube system utilizing eco-friendly R290 hydrocarbon refrigerant (0 ODP, 3 GWP). Driven by a bottom-mounted 1/5 HP compressor with epoxy-coated evaporator coils, the oversized balanced system holds temperature consistently between 0.5°C and 3.3°C (33°F to 38°F). Thermal management is driven by an LAE electronic temperature control system with an exterior digital display and alarm function.
Features:
- Premium Stainless Steel Construction: Features a high-tensile stainless steel front and solid door for superior durability against dents, scratches, and daily wear.
- NSF-Approved Interior: Lined with clear coated aluminum and a stainless steel floor with coved corners for easy cleaning and chemical resistance.
- Eco-Friendly R290 Hydrocarbon Refrigerant: Utilizes natural hydrocarbon refrigerant with zero (0) ODP and three (3) GWP for energy-efficient operation.
- LAE Electronic Temperature Control: Features an exterior digital temperature display and integrated alarm function for precise monitoring.
- Positive-Seal Self-Closing Door: Fitted with lifetime-guaranteed door hinges, torsion closure system, recessed handle, and standard keyed door lock.
- Heavy-Duty Adjustable Shelving: Includes three PVC-coated wire shelves adjustable on 1/2" increments with chrome-plated shelf clips.
- Ergonomic Bottom-Mount Design: Bottom-mounted compressor raises lower shelf to eliminate stooping and operates in the coolest area of the workspace.
- Mobility Included: Comes standard with 4" (102 mm) diameter swivel castors with front locking brakes.
- Solid Warranty Coverage: Backed by a 3-year parts and labor warranty with an additional 2-year warranty on the compressor.
Specifications:
