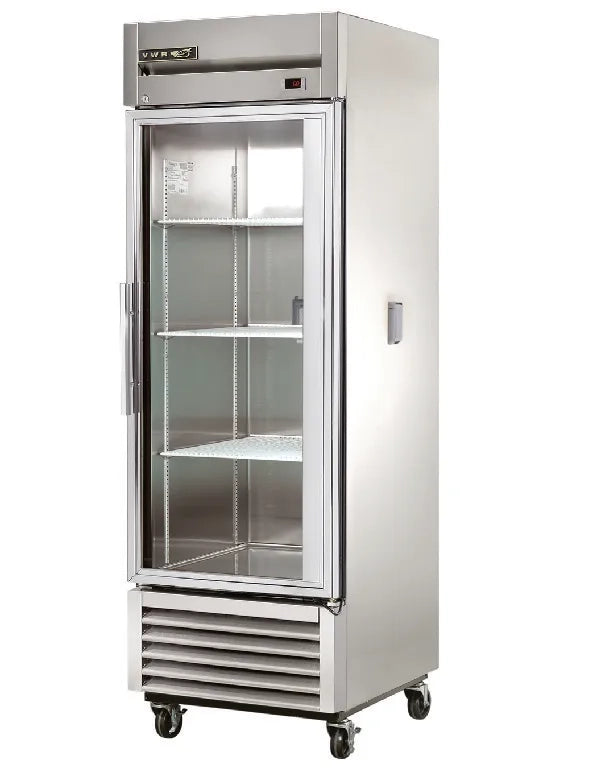

VWR TS-23G CHR Basic Reach-In Glass Door Laboratory Refrigerator, Stainless Steel, 23 cu. ft.

VWR TS-23G CHR Basic Reach-In Glass Door Laboratory Refrigerator, Low-E Thermal Glass Door, Stainless Steel, Patented IDL Lighting,  23 cu. ft., Solar Digital Display

The VWR Basic Reach-In Glass Door Refrigerator (Catalog No: 89239-070 / Model: TS-23G CHR), manufactured by True Refrigeration, is engineered for reliable, high-efficiency cold storage in demanding laboratory, clinical, and commercial environments. Offering a spacious 23 cubic foot (651 L) capacity, this stainless steel reach-in cabinet combines superior thermal performance, commercial-grade durability, and exceptional product visibility.

Built to withstand heavy use, the cabinet features higher tensile strength stainless steel on the exterior front and sides to resist dents and scratches, backed by a matching heavy-duty aluminum rear panel. The interior features a clean, hygienic stainless steel liner and floor. The entire structure is foamed-in-place using Ecomate, a high-density polyurethane insulation with zero ozone depletion potential (ODP) and zero global warming potential (GWP). A welded, heavy-duty steel frame rail is coated in black powder for maximum corrosion protection and is fitted with 4" (102 mm) stem castors (locking front set) for smooth mobility.

The unit is equipped with an energy-efficient "Low-E" double-pane thermal glass door framed in extruded aluminum. The door features a positive seal, self-closing mechanism with lifetime-guaranteed hinges and a torsion-type closure system, along with a 15" long extruded aluminum handle and a tool-free removable magnetic door gasket. The glass assembly keeps sample contents fully visible while insulating against ambient room heat. Physical security is ensured via standard built-in door locks.

The interior layout includes three heavy-duty, PVC-coated wire shelves supported by aluminum pilasters, fully adjustable in 1/2" increments to optimize storage space. Content visibility is enhanced by a safety-shielded, full-length Patented Integrated Door Light (IDL) system. For added functional convenience in research settings, the cabinet comes pre-equipped with an integrated 3/4" rear access port for validation probes or data loggers, as well as an internal grounded duplex electrical outlet with cover.

Thermal governance is driven by a factory-engineered, self-contained capillary tube refrigeration system using CFC-free R134a refrigerant. A bottom-mounted 1/3 HP compressor operates in the coolest, most grease-free area of the room, allowing for extra storage space on top of the cabinet and easy access for condenser coil cleaning. Coupled with a large epoxy-coated evaporator coil (corrosion protection) and sealed, cast-iron, self-lubricating fan motors, the system maintains a consistent temperature range of 3°C to 5°C (37.4°F to 41°F) with rapid temperature recovery. An exterior solar-powered digital display provides constant, clear temperature monitoring.

Features:

• Commercial-Grade Stainless Steel Construction: Premium stainless steel front, sides, and interior liner for maximum durability and corrosion resistance.
• Low-E Thermal Glass Door: Energy-efficient double-pane glass door provides high product visibility while maintaining strict internal temperatures.
• Patented IDL Lighting: Full-length Patented Integrated Door Light system with safety shielding illuminates contents cleanly.
• Bottom-Mounted Compressor: 1/3 HP condensing unit runs cooler and cleaner, providing lower shelf "no-stoop" access and additional top storage space.
• Built-in Utility Access: Features one factory-installed rear access port for monitoring probes and one internal grounded duplex electrical outlet.
• Eco-Friendly Ecomate Insulation: High-density polyurethane foam insulation with zero Ozone Depletion Potential (ODP) and zero Global Warming Potential (GWP).
• Heavy-Duty Adjustable Shelving: Includes three PVC-coated wire shelves adjustable in 1/2" increments with chrome-plated shelf clips.
• Robust Access & Mobility: Keyed door lock for inventory security and 4" swivel casters (front locking) for flexible installation.
• Solar Digital Display: Exterior solar digital temperature display allows effortless, battery-free temperature checking at a glance.
• Solid Warranty Protection: Backed by a 3-year parts and labor warranty with an additional 2-year warranty on the compressor.

Specifications:
