| Overview | |
|---|---|
| Product Name | VWR Plus Series Glass Door Specialty Laboratory Refrigerator |
| VWR Catalog No | 76580-156 |
| Model Code | VWR-HC-26 |
| Supplier | VWR International |
| Capacity | 26 cu. ft. (736 L) |
| Door Type | 1 glass swing door (self-closing, double pane vacuum-insulated, right hinged, non-reversible) |
| Defrost System | Cycle defrost |
| Shelves | 4 adjustable shelves (adjustable in 1/2" increments) |
| Control System | Microprocessor temperature controller with digital display and alarm module (0.1° resolution, °C/°F selectable) |
| Security | Keyed door lock |
| Alarms | Audible and visual high/low temperature alarms, sensor error alarm, power failure alarm, remote alarm contacts, alarm validation, alarm mute with ring-back |
| Data Tracking | Resettable 1-point Min/Max temperature history (sample-simulated) |
| Probe Access | 3/8" probe access port |
| Cabinet Exterior | White laminated vinyl exterior |
| Cabinet Interior | White aluminum liner with stainless steel floor |
| Lighting | Safety-shielded LED interior lights (switch controlled) |
| Casters | Swivel casters installed (adds 4" to overall height) |
| General Warranty | Two-year parts and labor warranty |
| Compressor Warranty | Three-year additional compressor parts warranty |
| Certifications & Compliance | ENERGY STAR Certified, UL/C-UL Listed, Environmentally Preferable (Energy Efficient) |
| Physical Dimensions & Weight | |
| Exterior Dimensions without Casters (W x D x H) | 30.00" W x 30.50" D x 78.625" H (762 x 775 x 1997 mm) |
| Exterior Dimensions with Casters (W x D x H) | 30.00" W x 30.50" D x 82.625" H (762 x 775 x 2099 mm) |
| Interior Dimensions (W x D x H) | 26.00" W x 23.75" D x 56.25" H (660 x 603 x 1429 mm) |
| Product Net Weight | 156 kg (345 lbs.) |
| Shipping Weight | 176 kg (388 lbs.) |
| Performance & Electrical Details | |
| Operating Temperature Range | 1°C to 10°C |
| Air Circulation | Forced draft air circulation |
| Compressor Power | 1/3 HP |
| Cooling Capacity | 4932 BTU/HR |
| Refrigerant | Natural R290 Hydrocarbon refrigerant (HFC-free) |
| Electrical Requirements | 115 V / 60 Hz, 5.4 Amps |
VWR VWR-HC-26 Plus Series Glass Door Specialty Laboratory Refrigerator Digital Display and Alarms, 26 cu. ft.
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
VWR VWR-HC-26 Plus Series Glass Door Specialty Laboratory Refrigerator Digital Display and Alarms, Energy-Efficient Vacuum-Insulated Glass Door, 26 cu. ft.

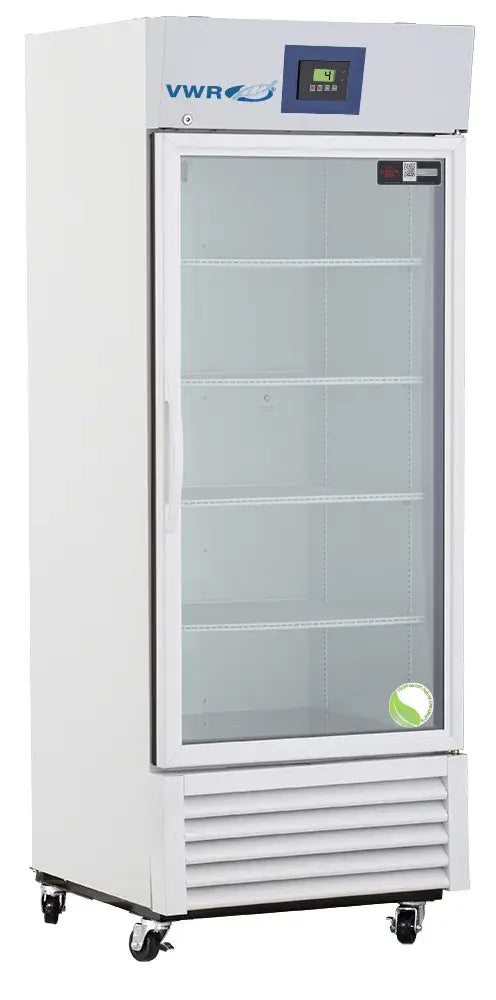

The VWR Plus Series Glass Door Specialty Laboratory Refrigerator (Catalog No: 76580-156 / Model: VWR-HC-26), supplied by VWR International, is a high-capacity 26 cubic foot (736 L) cold storage solution engineered for clinical, pharmaceutical, research, and industrial laboratory settings requiring advanced temperature monitoring, full inventory visibility, and high-volume storage capacity. Featuring a self-closing, double-pane vacuum-insulated glass swing door (right-hinged, non-reversible) with a recessed handle, this upright cabinet minimizes ambient heat gain while enabling immediate visual inspection of sensitive biological materials and reagents.
Thermal accuracy and safety are driven by a Microprocessor Temperature Controller paired with a Digital Temperature Display and Alarm Module. Operating across an adjustable temperature range of 1°C to 10°C, the system utilizes forced draft air circulation for rapid thermal recovery and temperature uniformity alongside an automated cycle defrost system. The advanced monitoring setup features a sample-simulated digital display with 0.1° resolution (selectable °C/°F), a resettable 1-point Min/Max temperature history, audible/visual high and low temperature alarms, sensor error alarms, power failure alarms, remote alarm contacts, alarm validation, and an alarm mute feature with ring-back capability.

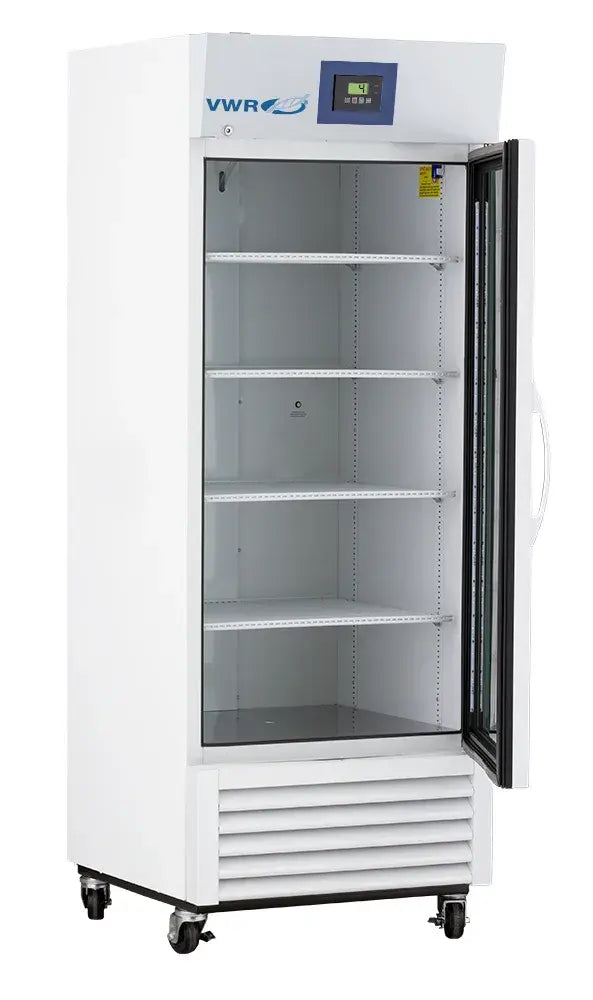

The heavy-duty interior features a durable white aluminum liner with a stainless steel floor and safety-shielded, switch-controlled LED interior lighting. Inventory layout is highly customizable with four heavy-duty adjustable shelves (adjustable in 1/2" increments).
Constructed with a white laminated vinyl exterior, the cabinet includes a keyed door lock, a magnetic door gasket for a positive seal, a 3/8" probe access port, and factory-installed swivel casters (which add 4" to overall cabinet height). Operating on eco-friendly, HFC-free R290 natural hydrocarbon refrigerant, this ENERGY STAR certified unit is UL/C-UL listed and backed by a 2-year parts and labor warranty plus an additional 3-year compressor parts warranty.
Features:
- High-Capacity Specialty Design: Provides 26 cu. ft. (736 L) of reliable cold storage capacity in an upright cabinet engineered for demanding laboratory environments.
- Energy-Efficient Vacuum-Insulated Glass Door: Features 1 self-closing, double-pane vacuum-insulated glass door with a recessed handle and magnetic gasket for maximum insulation and sample visibility.
- Microprocessor Thermal Regulation: Controlled by a precision microprocessor regulating an adjustable operating range of 1°C to 10°C with forced draft air circulation and cycle defrosting.
- Advanced Display & Multi-Alarm System: Features a 0.1° resolution sample-simulated display, Min/Max history logging, audible/visual high/low temperature alarms, sensor error alarms, power failure alarms, remote contacts, alarm validation, and mute with ring-back.
- Flexible & Hygienic Interior: Built with a white aluminum interior liner, stainless steel floor, safety-shielded LED lighting, and 4 heavy-duty shelves adjustable in 1/2" increments.
- Security & Mobile Mobility: Equipped with a keyed door lock, a 3/8" probe access port, and swivel casters for convenient mobility and positioning.
- ENERGY STAR Certified & Eco-Friendly: Powered by natural, HFC-free R290 hydrocarbon refrigerant with environmentally friendly foam insulation and packaging.
- Compliance & Extended Warranty: UL/C-UL listed design backed by a 2-year parts and labor warranty plus an additional 3-year compressor parts warranty.
Specifications:
