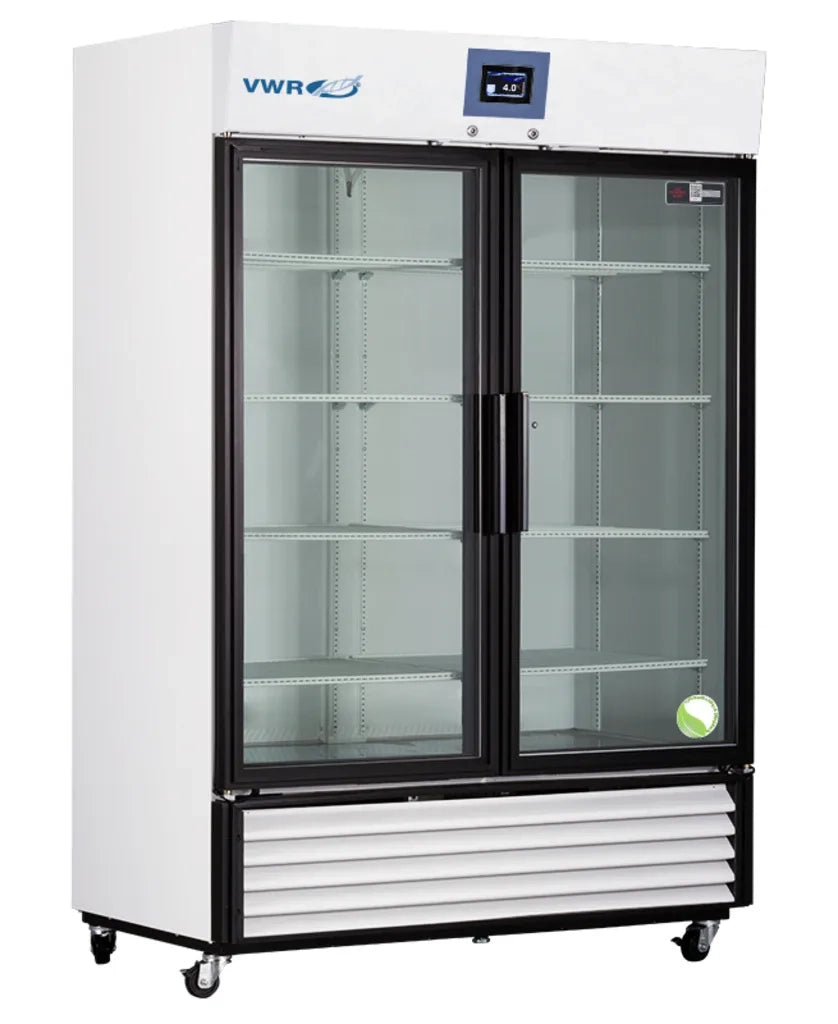

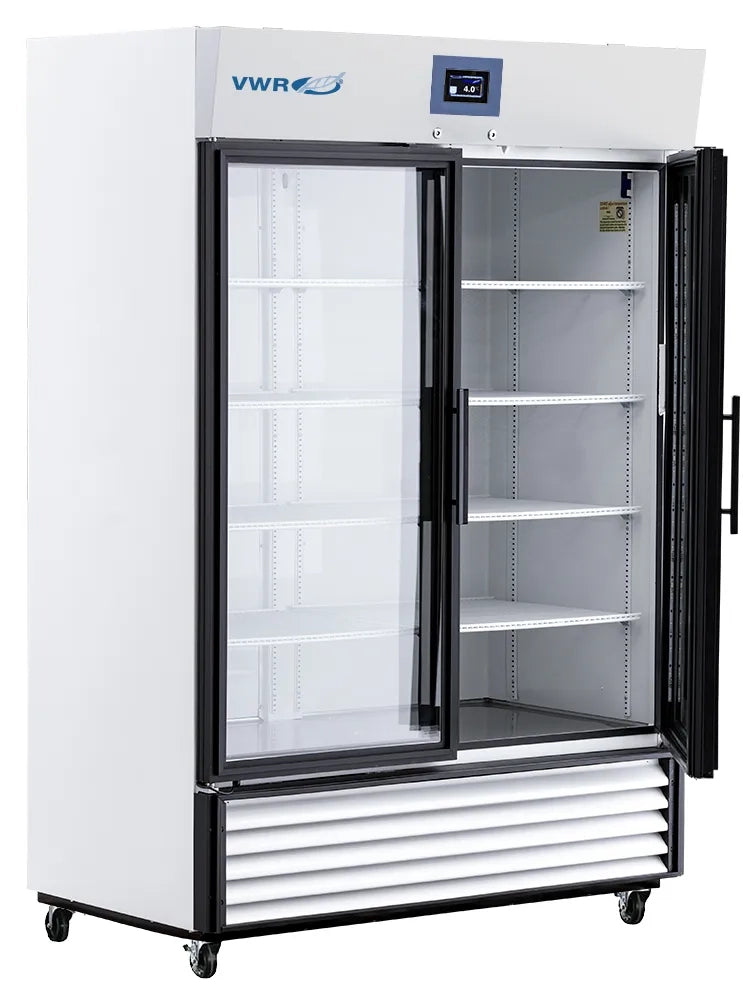

VWR VWR-HC-49-TS Performance Series Glass Door Laboratory Refrigerator Touchscreen Display and Data Logging, 49 cu. ft.

VWR VWR-HC-49-TS  Performance Series Glass Door Laboratory Refrigerator Touchscreen Display & Data Logging, 49 cu. ft., Forced Air Circulation and Cycle Defrost, Comprehensive Alarm Safeguards

The VWR Performance Series Glass Door Laboratory Refrigerator (Catalog No: 76580-162 / Model: VWR-HC-49-TS), supplied by VWR International, is an expansive 49 cubic foot (1388 L) cold storage solution engineered for demanding scientific, pharmaceutical, and clinical laboratory settings requiring maximum storage capacity, immediate inventory visibility, precise thermal control, and audit-ready data compliance. Featuring two self-closing, double-pane vacuum-insulated swing glass doors with heavy-duty handles, this unit provides maximum energy efficiency and thermal insulation with complete interior visibility.

At the core of the system is a Microprocessor Temperature Controller paired with an intuitive Password-Protected Touchscreen Digital Temperature Display and Alarm Module. The unit provides sample-simulated temperature monitoring with 0.1° resolution (selectable °C or °F), an active temperature scale bar display, a resettable 1-point min/max temperature history, a digital 24-hour temperature chart, integrated temperature data logging, and a USB port for seamless data transfer and software updates. It also includes a real-time operational display clock, 4-20mA output, an electronic troubleshooting guide, and an electronic QR code for instant access to manuals and technical support.

The system maintains a consistent operating temperature range of 1°C to 10°C using forced draft air circulation and an automated cycle defrost mechanism. System integrity is continuously monitored by a comprehensive suite of safety alarms including audible and visual high/low temperature, sensor error, power failure, door ajar, and low battery alerts. The alarm system offers validation testing, volume control, mute functions with ring back, and remote alarm contacts for facility-wide monitoring system integration.

Built for long-term durability, the cabinet features a white laminated vinyl exterior paired with a heavy-duty white aluminum interior liner and a stainless steel floor. Interior organization includes eight adjustable shelves (adjustable in 1/2" increments) and safety-shielded, switch-controlled interior LED lighting. The cabinet is equipped with keyed door locks, magnetic door gaskets, a 3/8" probe access port, and 4" swivel casters. Powered by eco-friendly, HFC-free R290 natural hydrocarbon refrigerant, this high-performance unit is UL/C-UL listed and backed by a 3-year parts and labor warranty plus an additional 2-year compressor parts warranty.

Features:

• Double-Pane Vacuum-Insulated Glass Doors: Features 2 self-closing swing glass doors with double-pane vacuum insulation and heavy-duty handles for maximum thermal retention and clear inventory monitoring.
• Touchscreen Interface & Data Logging: Includes a password-protected touchscreen module with sample-simulated 0.1° resolution display, 24-hour digital temperature charting, data logging, and a USB port for data transfer.
• Comprehensive Alarm Safeguards: Features audible and visual high/low temperature, sensor error, power failure, door ajar, and low battery alarms with adjustable volume, alarm validation, mute with ring back, and remote alarm contacts.
• Advanced Diagnostics & Connectivity: Equipped with 4-20mA output, an active temperature scale bar, real-time clock, and an electronic troubleshooting guide with QR code access.
• Forced Air Circulation & Cycle Defrost: Delivers uniform temperature distribution across 1°C to 10°C using forced draft air circulation paired with an automated cycle defrost system.
• Durable Interior & Flexible Storage: Constructed with a white laminated vinyl exterior, white aluminum liner, stainless steel floor, 8 adjustable shelves (adjustable in 1/2" increments), and switch-controlled interior LED lighting.
• Eco-Friendly R290 Hydrocarbon Refrigerant: Powered by natural, HFC-free R290 refrigerant with eco-friendly foam insulation and packaging for zero ozone depletion.
• Safety & Warranty Compliance: UL/C-UL listed design supported by a 3-year parts and labor warranty plus an additional 2-year compressor parts warranty.

Specifications:
