| Product Name | VWR VWR-HC-72S-TS Performance Series Solid Door Laboratory Refrigerator |
| VWR Catalog No | 76579-128 |
| Model Code | VWR-HC-72S-TS |
| Supplier | VWR International |
| Capacity | 72 cu. ft. (2039 L) |
| Door Type | 3 solid swing doors (self-closing, right hinged, non-reversible) |
| Defrost System | Cycle defrost |
| Shelves | 12 adjustable shelves (adjustable in 1/2" increments) |
| Control System | Microprocessor controller with Password-Protected Touchscreen Display Module |
| User Interface | Digital temperature display (.1° resolution), active scale bar, 24-hr chart, real-time clock |
| Data Management | Integrated temperature data logging, USB port for data export, 4-20mA output |
| Diagnostics & Support | Electronic troubleshooting guide, QR code for owner's manual & support |
| Security | Keyed door locks, password protection |
| Alarms | High/low temperature, sensor error, power failure, door ajar, low battery (audible, visual, remote) |
| Alarm Control | Adjustable volume, alarm validation, mute with ring back, remote alarm contacts |
| Probes | Dual probes (1 air probe, 1 sample bottle probe) |
| Probe Access | 3/8" probe access port |
| Lighting | Switch-controlled, safety-shielded interior LED light |
| Cabinet Material | White powder-coated steel interior and exterior |
| Mobility | 3.5" swivel casters included |
| General Warranty | Three-year parts and labor warranty |
| Compressor Warranty | Two-year additional compressor parts warranty |
| Certifications & Compliance | ETL Listed, Environmentally Preferable (Safer Human & Environmental Health, Energy Efficient) |
| Exterior Dimensions (W x D x H) | 81.00" W x 34.00" D x 81.75" H with casters; 78.25" H without casters (2057 x 864 x 2076 mm) |
| Interior Dimensions (W x D x H) | 76.00" W x 24.75" D x 52.25" H (1930 x 629 x 1327 mm) |
| Product Net Weight | 272 kg (600 lbs.) |
| Shipping Weight | 272 kg (600 lbs.) |
| Operating Temperature Range | 1°C to 10°C |
| Air Circulation | Forced draft air circulation |
| Compressor Power | 1/2 HP |
| Refrigerant | Natural R290 Hydrocarbon refrigerant (HFC-free) |
| Electrical Requirements | 115 V / 60 Hz, 7.5 Amps |
New
VWR VWR-HC-72S-TS Performance Series Solid Door Laboratory Refrigerator Touchscreen Display and Data Logging, 72 cu. ft.
by
VWR
SKU: VWR-HC-72S-TS
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
VWR VWR-HC-72S-TS Performance Series Solid Door Laboratory Refrigerator Touchscreen Display and Data Logging, 72 cu. ft., Forced Air Cooling and Cycle Defrost, Eco-Friendly R290 Hydrocarbon Refrigerant

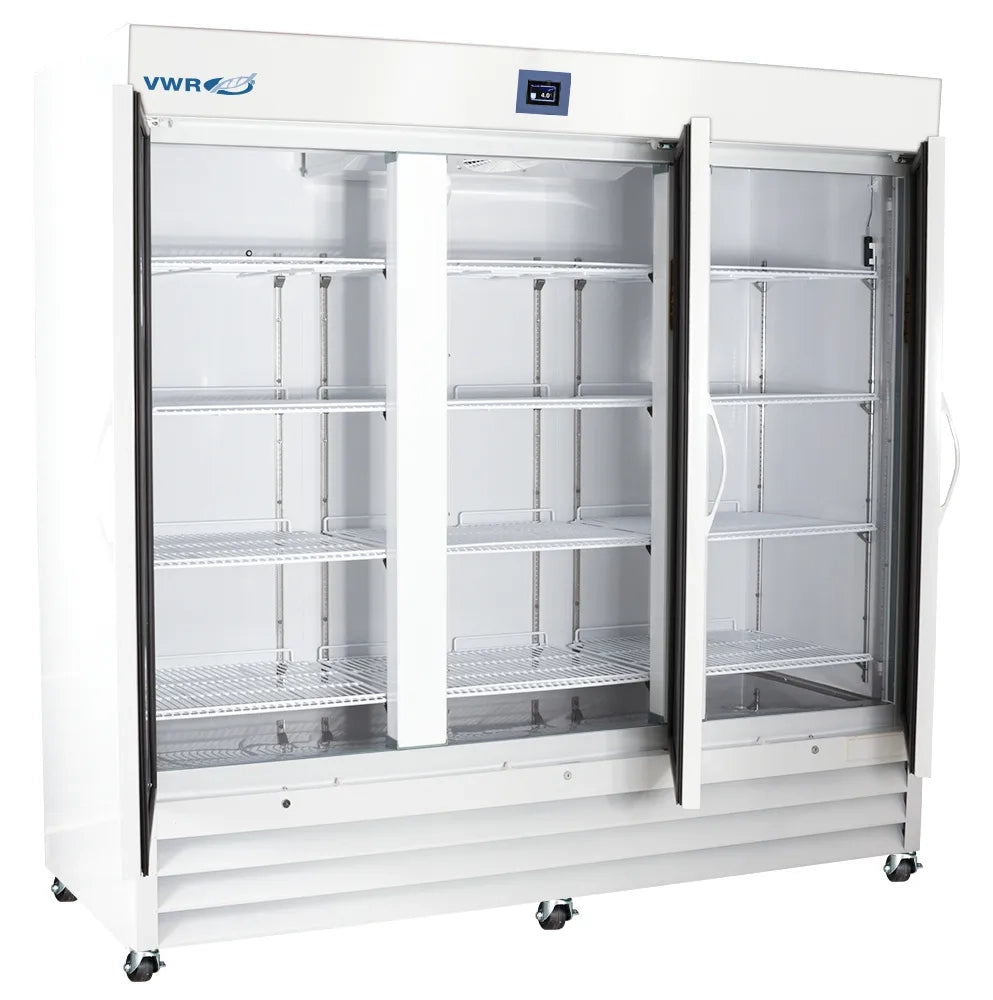

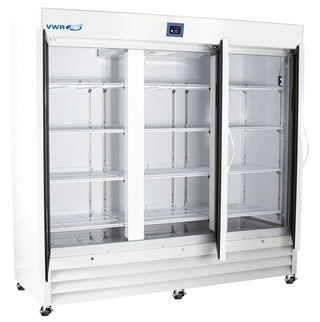

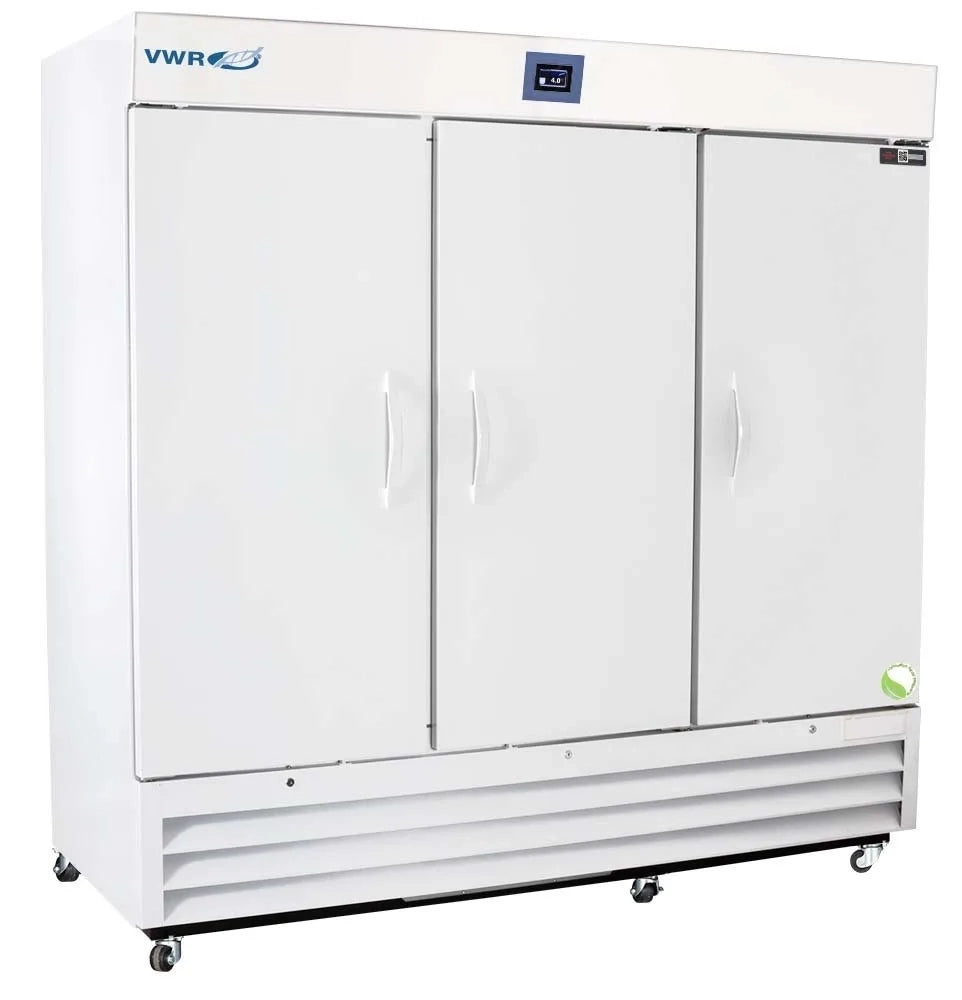

The VWR Performance Series Solid Door Laboratory Refrigerator (Catalog No: 76579-128 / Model: VWR-HC-72S-TS), supplied by VWR International, is a maximum-capacity 72 cubic foot (2039 L) cold storage solution designed for critical scientific, pharmaceutical, and clinical laboratory environments requiring precise thermal control, advanced data logging, and auditing compliance. Featuring three self-closing swing solid doors (right hinged, non-reversible) with heavy-duty handles, this unit provides maximum thermal insulation and sample protection in an expansive three-door freestanding footprint.
At the core of the system is a Microprocessor Temperature Controller paired with an intuitive Password-Protected Touchscreen Digital Temperature Display and Alarm Module. The unit provides sample-simulated temperature monitoring with 0.1° resolution (selectable °C or °F), an active temperature scale bar display, a resettable 1-point min/max temperature history, a digital 24-hour temperature chart, integrated temperature data logging, and a USB port for seamless data export and software updates. It also features a real-time operational display clock, 4-20mA output, an electronic troubleshooting guide, and an electronic QR code for instant access to manuals and technical support.
The system maintains a consistent operating temperature range of 1°C to 10°C using forced draft air circulation and an automated cycle defrost mechanism. System integrity is monitored by dual sensing probes (1 air probe and 1 sample bottle probe) and a comprehensive suite of safety alarms including audible/visual high/low temperature, sensor error, power failure, door ajar, and low battery alerts. The alarm system offers validation testing, volume control, mute functions with ring back, and remote alarm contacts for facility monitoring integration.
Interior organization includes twelve heavy-duty white powder-coated steel shelves (adjustable in 1/2" increments) and safety-shielded, switch-controlled LED interior lighting. Built with a durable white powder-coated steel interior and exterior, the cabinet is equipped with keyed door locks, magnetic door gaskets for a positive seal, a 3/8" probe access port, and 3.5" swivel casters. Utilizing eco-friendly R290 natural hydrocarbon refrigerant, this energy-efficient unit is ETL listed and backed by a 3-year parts and labor warranty plus an additional 2-year compressor parts warranty.
Features:
- Touchscreen Interface & Data Logging: Features a password-protected touchscreen module with sample-simulated 0.1° resolution display, 24-hour digital temperature charting, data logging, and a USB port for data transfer.
- Triple Swing Solid Doors: Equipped with 3 self-closing swing solid doors (right hinged, non-reversible) with magnetic gaskets and heavy-duty handles for maximum thermal efficiency and insulation.
- Comprehensive Alarm Safeguards: Features audible and visual high/low temperature, sensor error, power failure, door ajar, and low battery alarms with adjustable volume, alarm validation, mute with ring back, and remote alarm contacts.
- Dual Sensing Probes & Advanced Diagnostics: Utilizes 2 sensing probes (1 air probe and 1 sample bottle probe), a 4-20mA output, an active temperature scale bar, and an electronic troubleshooting guide with QR code access.
- Forced Air Cooling & Cycle Defrost: Maintains uniform temperature stability across 1°C to 10°C using forced draft air circulation paired with an automated cycle defrost system.
- Flexible Interior Organization: Includes 12 adjustable white powder-coated steel shelves (adjustable in 1/2" increments) and switch-controlled interior LED lighting.
- Eco-Friendly R290 Hydrocarbon Refrigerant: Powered by natural R290 refrigerant for zero ozone depletion, reduced environmental impact, and high energy efficiency.
- Safety & Warranty Compliance: ETL listed design supported by a 3-year parts and labor warranty plus an additional 2-year compressor parts warranty.
Specifications:
