| Overview | |
|---|---|
| Product Name | VWR Plus Series Flammable Material Storage Laboratory Refrigerator |
| VWR Catalog No | 76644-726 |
| Model Code | VWR-HC-FRP-20P |
| Supplier | VWR International |
| Capacity | 20 cu. ft. (566 L) |
| Safety Standards | Meets NFPA 30 and NFPA 45 standards for flammable cold storage (ATEX / non-sparking interior components) |
| Door Type | 1 solid swing door (right hinged) |
| Defrost System | Cycle defrost |
| Shelves | 5 adjustable shelves (4 full shelves, 1 half shelf) |
| Control System | Microprocessor temperature controller with bi-colored LED display and touch-pad controls (0.1°C resolution, °C/°F switchable) |
| Security | Keyed door lock |
| Alarms | Audible and visual high/low temperature alarms, sensor error alarm, power failure alarm, remote alarm contacts (state-switching), alarm validation, alarm mute with ring-back |
| Data Tracking | Resettable 1-point Min/Max temperature history |
| Probes | Dual probes (1 air probe, 1 sample bottle probe) |
| Probe Access | 3/4" diameter rear-wall probe access port |
| Cabinet Material | White powder-coated steel exterior |
| Insulation | High-density EPA-compliant foamed-in-place urethane insulation |
| Leveling | Leveling legs included |
| Clearance Requirement | Requires 4" clearance on sides and back for proper ventilation |
| General Warranty | Two-year parts and labor warranty |
| Compressor Warranty | Five-year compressor parts warranty |
| Certifications & Compliance | ETL Listed, Environmentally Preferable (Safer Human and Environmental Health / Energy Efficient) |
| Physical Dimensions & Weight | |
| Exterior Dimensions (W x D x H) | 30.875" W x 28.75" D x 76.375" H (784 x 730 x 1940 mm) |
| Interior Dimensions (W x D x H) | 24.75" W x 20.75" D x 65.25" H (629 x 527 x 1657 mm) |
| Door Swing Clearance | 29.25" door swing / 58.00" total depth with door open |
| Product Net Weight | 114 kg (251 lbs.) |
| Shipping Weight | 125 kg (276 lbs.) |
| Performance & Electrical Details | |
| Operating Temperature Range | 1°C to 10°C |
| Ambient Operating Conditions | Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH |
| Refrigerant | Natural R600a Hydrocarbon refrigerant (HFC-free) |
| Electrical Requirements | 115 V / 60 Hz, 3.0 Amps |
| Power Cord / Plug | NEMA 5-15P plug (conforms to UL471 requirements) |
New
VWR VWR-HC-FRP-20P Plus Series Flammable Material Storage Laboratory Refrigerator Digital Display and Alarms, 20 cu. ft.
by
VWR
SKU: VWR-HC-FRP-20P
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
VWR VWR-HC-FRP-20P Plus Series Flammable Material Storage Laboratory Refrigerator, Intrinsically Safe Cabinet Interior, Digital Display and Alarms, Dual Probe Safeguards, 20 cu. ft.

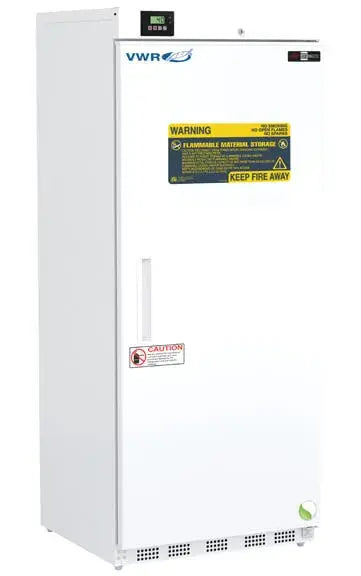

The VWR Plus Series Flammable Material Storage Laboratory Refrigerator (Catalog No: 76644-726 / Model: VWR-HC-FRP-20P), supplied by VWR International, is a 20 cubic foot (566 L) high-capacity specialized cold storage solution engineered for the safe preservation of flammable and combustible liquids in sealed containers within unclassified laboratory environments. Fully compliant with NFPA 30 and NFPA 45 standards, this upright refrigerator utilizes non-sparking and ATEX-rated internal electrical components to eliminate internal ignition sources and maintain an intrinsically safe interior storage chamber.
Thermal regulation and safety monitoring are controlled by an advanced Microprocessor Temperature Controller equipped with a Bi-Colored LED Display and touch-pad alarm module. Operating across an adjustable temperature range of 1°C to 10°C with automated cycle defrosting, the controller offers 0.1°C resolution, switchable °C/°F temperature unit display, and a resettable 1-point Min/Max temperature history log. Thermal safeguards are continuously monitored via dual sensing probes (1 air probe and 1 sample bottle probe), state-switching remote alarm contacts, and comprehensive audible/visual alarms covering high/low temperature excursions, sensor errors, and power failures, supported by alarm validation and mute with ring-back functionality.

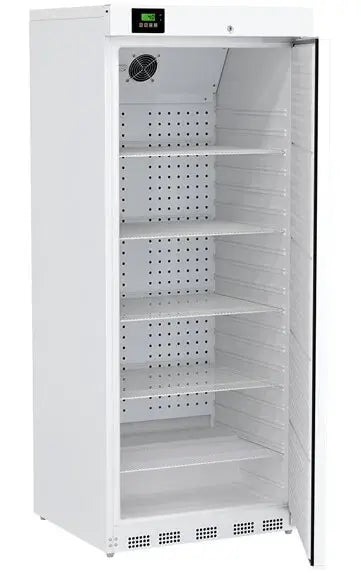

The interior layout is optimized for storage flexibility and spatial efficiency, offering five adjustable shelves (four full shelves plus one half shelf) and a rear-wall 3/4" probe access port for external validation equipment and temperature monitoring.
Constructed with a white powder-coated steel exterior and insulated with high-density EPA-compliant foamed-in-place urethane insulation, the unit features a single right-hinged solid swing door equipped with a keyed lock and a magnetic door gasket for a positive seal. Leveling legs allow for stable positioning and precise cabinet balance. Operating on eco-friendly, HFC-free R600a natural hydrocarbon refrigerant, this unit is ETL Listed and backed by a 2-year parts and labor warranty plus a 5-year compressor parts warranty.
Features:
- NFPA Compliant Flammable Storage: Fully complies with NFPA 30 and NFPA 45 standards, utilizing non-sparking and ATEX-rated internal components for safe storage of combustible materials.
- Intrinsically Safe Cabinet Interior: Prevents internal electrical sparking, ensuring safe cold storage for volatile liquids in sealed containers within unclassified laboratory spaces.
- Microprocessor Thermal Control: Controlled by a precision microprocessor with a bi-colored LED display and touch-pad controls across an adjustable 1°C to 10°C operating range with cycle defrosting.
- Comprehensive Display & Multi-Alarm System: Features 0.1°C resolution, °C/°F toggle, Min/Max history tracking, audible/visual high/low temperature alarms, sensor error alarms, power failure alarms, remote contacts, and mute with ring-back.
- Dual Probe Safeguards: Equipped with 2 sensing probes (1 air probe, 1 sample bottle probe) for precise temperature assessment.
- Versatile Interior Storage: Includes 5 adjustable shelves (4 full shelves, 1 half shelf) to accommodate flexible sample and chemical container layouts.
- Security & External Probe Access: Fitted with a keyed door lock, magnetic door gasket, leveling legs, and a rear-wall 3/4" probe access port.
- Eco-Friendly R600a Hydrocarbon Refrigerant: Powered by natural, HFC-free R600a hydrocarbon refrigerant with high-density urethane foam insulation and a NEMA 5-15 power cord.
- Certified Quality & Extended Warranty: ETL listed design supported by a 2-year parts and labor warranty plus a 5-year compressor parts warranty.
