| Overview | |
|---|---|
| Product Name | VWR Premium Series Laboratory Glass Door Refrigerator |
| VWR Catalog No | 76919-378 |
| Model Code | VWR-HC-PL-23 |
| Supplier | VWR International |
| Capacity | 23 cu. ft. (651 L) |
| Energy Certification | ENERGY STAR® Certified |
| Door Type | 1 glass swing door (right hinged) |
| Defrost System | Cycle defrost (optimized, zero energy) |
| Shelves | 5 adjustable shelves with rear guard rails (optional pull-out drawers available) |
| Compressor Type | Hermetic Variable Speed Compressor (VSC), 1300–4000 rpm |
| Control System | PID Microprocessor temperature controller with LCD display |
| Connectivity & Data | RS-485 (MODBUS), USB port for data transfer and software updates |
| Battery Backup | 24V high-capacity battery (keeps controller, all alarms, DAQ, and event logging active) |
| Security | Key door lock |
| Alarms | Audible and visual indicators for power failure, temperature sensor failure, high/low temperature, door ajar, low/replacement battery; alarm logging up to 100 entries |
| Probes | Dual probes in bottle with glass bead thermal media |
| Probe Access | 3/4" diameter rear-wall probe access port |
| Cabinet Material | White powder-coated steel exterior |
| Insulation | High-density EPA-compliant foamed-in-place urethane insulation |
| Lighting | Shielded, switched full-coverage balanced spectrum LED lighting |
| Mobility | 4 preinstalled swivel casters (front locking) |
| Parts & Labor Warranty | Two (2) years parts and labor warranty |
| Compressor Warranty | Seven (7) years compressor warranty |
| Certifications & Standards | ETL listed, C-ETL listed, certified to UL471 standard, ENERGY STAR Certified, Environmentally Preferable (Safer Human and Environmental Health / Energy Efficient) |
| Physical Dimensions & Weight | |
| Exterior Dimensions (W x D x H) | 26.875" W x 35.75" D x 81.50" H (683 x 908 x 2070 mm) |
| Interior Dimensions (W x D x H) | 22.00" W x 25.00" D x 52.25" H (559 x 635 x 1327 mm) |
| Door Swing Clearance | 25.25" door swing / 59.125" total depth with door open |
| Product Net Weight | 159 kg (350 lbs.) |
| Shipping Weight | 185.5 kg (409 lbs.) |
| Performance & Electrical Details | |
| Operating Temperature Range | 1°C to 10°C (Nominal set point 4°C) |
| Thermal Uniformity (Cabinet Air) | ±0.6°C |
| Thermal Stability (Cabinet Air) | ±0.6°C |
| Max Temperature Variation | ±0.9°C |
| Pull Down Time to Nominal Temp | 55 minutes (at 22°C ambient) |
| Noise Pressure Level | 35 dBA or less installed |
| Energy Consumption | 1.15 kWh/day |
| Average Heat Rejection | 320 BTU/hr |
| Refrigerant | EPA SNAP compliant R600a Hydrocarbon refrigerant |
| Electrical Requirements | 110–120 V AC, 60 Hz, 15 A minimum facility circuit |
| Rated Amperage | 3.0 Amps |
| Power Cord / Plug | NEMA 5-15P plug |
New
VWR VWR-HC-PL-23 Premium Series Laboratory Glass Door Refrigerator Variable Speed Compressor, ENERGY STAR, 23 cu. ft.
by
VWR
SKU: VWR-HC-PL-23
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
VWR VWR-HC-PL-23 Premium Series Laboratory Glass Door Refrigerator Variable Speed Compressor, PID Microprocessor Controller and LCD Display ENERGY STAR, 23 cu. ft.

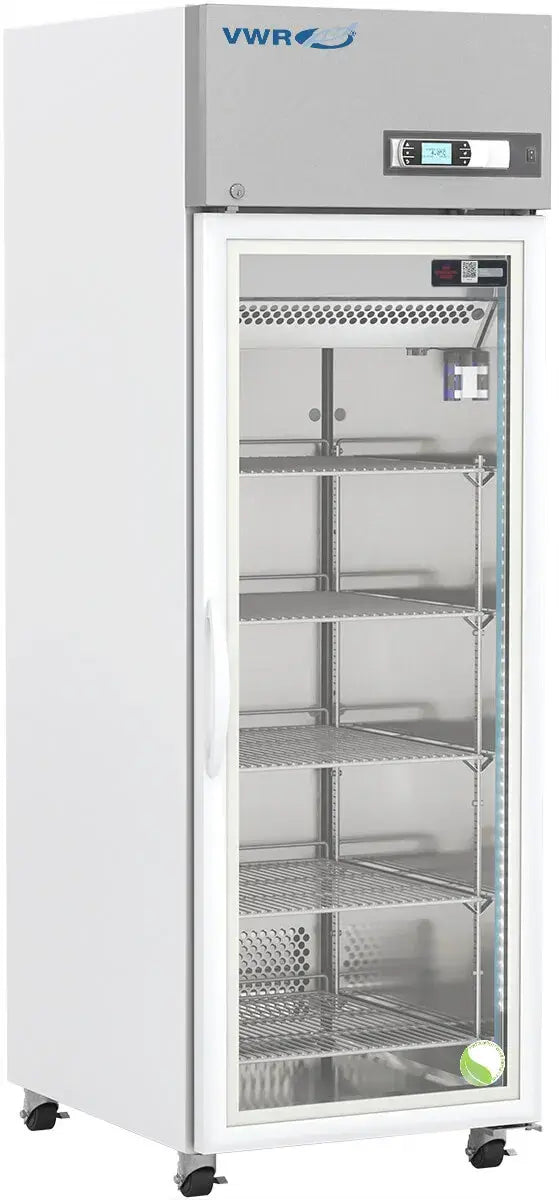

The VWR Premium Series Laboratory Glass Door Refrigerator (Catalog No: 76919-378 / Model: VWR-HC-PL-23), supplied by VWR International, is an ENERGY STAR® certified 23 cubic foot (651 L) high-performance vertical cold storage solution designed for temperature-sensitive scientific, biological, and clinical laboratory materials. Powered by a hermetic Variable Speed Compressor (VSC) operating across a 1300 to 4000 rpm range, this unit automatically self-adjusts to thermal demands to maximize energy efficiency, accelerate pull-down time (55 minutes to nominal temperature), and deliver ultra-quiet operational performance (35 dBA or less).
System temperature is regulated by a Proportional Integral Derivative (PID) microprocessor controller paired with an LCD display, offering precise thermal management between 1°C and 10°C (factory default set point 4°C). The Forced Air circulation system, combined with zero-energy cycle defrosting, achieves outstanding thermal stability of ±0.6°C, thermal uniformity of ±0.6°C, and a maximum cabinet temperature variation of ±0.9°C. System monitoring is supported by a 24V high-capacity battery backup that maintains active temperature monitoring, data acquisition, and alarm logging (last 100 entries) during power outages. Communication and data management are facilitated via an RS-485 (MODBUS) connection and an integrated USB port for event logging export and firmware updates.

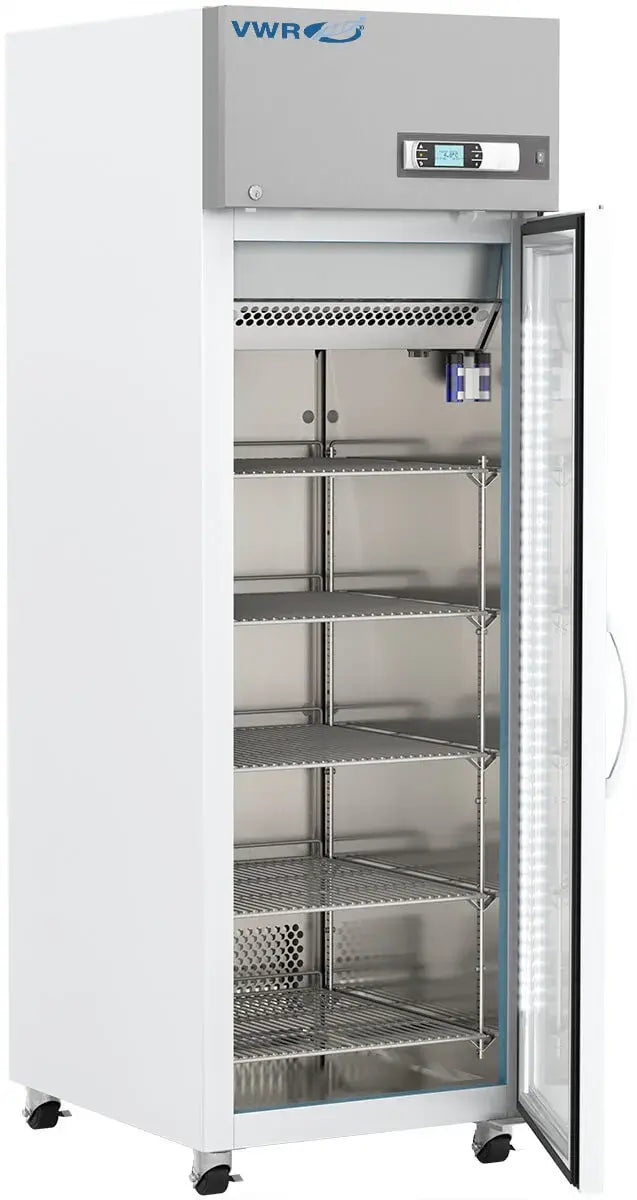

The interior cabinet features full-coverage, balanced-spectrum shielded LED lighting, five adjustable steel shelves with rear guard rails, optional pull-out drawer capability, and a rear-wall 3/4" probe access port for external sensors. Thermal monitoring is driven by dual probes housed in a thermal media bottle filled with glass beads.
Constructed with a heavy-duty white powder-coated steel exterior and high-density EPA-compliant foamed-in-place urethane insulation, the unit features a single right-hinged glass swing door with a key lock for security. Mounted on four preinstalled swivel casters (front locking casters), the unit utilizes eco-friendly EPA SNAP-compliant R600a natural hydrocarbon refrigerant. Certified to UL471 standards, ETL listed, and ENERGY STAR certified, this refrigerator is backed by a 2-year parts and labor warranty and a 7-year compressor warranty.
Features:
- Variable Speed Compressor (VSC) Technology: Hermetic VSC self-adjusts speed (1300–4000 rpm) to dynamic thermal loads, delivering maximum energy savings, extended service life, and 55-minute pull-down times.
- ENERGY STAR® Certified Efficiency: Consumes just 1.15 kWh/day with low heat rejection (320 BTU/hr), exceeding stringent ENERGY STAR energy conservation criteria.
- Ultra-Quiet Operation: Engineered for noise-sensitive laboratory environments with an operational sound pressure level of 35 dBA or less.
- Superior Thermal Uniformity & Stability: Patent-pending forced air circulation achieves ±0.6°C cabinet air uniformity and ±0.6°C stability.
- PID Microprocessor Controller & LCD Display: Advanced PID control system with clear LCD interface, switchable temperature scales, and 0.1°C resolution across a 1°C to 10°C range.
- Battery Backup & Comprehensive Alarms: 24V high-capacity battery backup maintains controller, data logging, and alarm functions (power failure, temp sensor failure, battery monitor, high/low temp, door ajar) for up to 100 logged events.
- Data Transfer & Digital Connectivity: RS-485 (MODBUS) interface and USB port allow easy temperature data download and system updates.
- Illuminated Glass Door Cabinet: Single right-hinged swing glass door with key lock, full-coverage shielded LED lighting, 5 adjustable guard-railed shelves, and rear 3/4" probe access port.
- Eco-Friendly R600a Refrigerant: EPA SNAP-compliant R600a hydrocarbon refrigerant with zero-energy cycle defrost and high-density urethane foam insulation.
- Mobile Design & Comprehensive Warranty: Equipped with 4 preinstalled swivel casters (front locking), supported by a 2-year parts and labor warranty plus a 7-year compressor warranty.
Specifications:
