| Overview | |
|---|---|
| Product Name | VWR Performance Series Glass Door Chromatography Refrigerator |
| VWR Catalog No | 76514-280 |
| Model Code | VWR-HCCP-16-TS |
| Supplier | VWR International |
| Capacity | 16 cu. ft. (453 L) |
| Door Type | 1 swing glass door (self-closing, right hinged, non-reversible) |
| Defrost System | Cycle defrost |
| Shelves | 3 adjustable shelves (adjustable in 1/2" increments) |
| Control System | Microprocessor controller with Touch Screen Display Module (Password Protected) |
| Chromatography Utilities | 1 GFCI protected duplex electrical outlet, 2 two-inch access ports (with self-closing metal covers) |
| Security | Keyed door lock, password protection, advanced hydrocarbon detector |
| Alarms | High/low temperature, sensor error, power failure, door ajar, low battery (audible, visual, remote) |
| Probes | Dual probes (1 air probe, 1 sample bottle probe) |
| Probe Access | 3/4" probe access port |
| Data Management | Data logging, USB port, 24-hr digital chart, 4-20mA output, remote contacts |
| Lighting | Switch-controlled, safety-shielded interior LED light |
| Cabinet Material | White powder-coated steel interior and exterior |
| Insulation | High-density urethane foam cabinet insulation |
| Mobility | 3.5" swivel casters included |
| General Warranty | Three-year parts and labor warranty |
| Compressor Warranty | Two-year additional compressor parts warranty |
| Certifications & Compliance | ENERGY STAR Certified, ETL Listed, Environmentally Preferable (Safer Human & Environmental Health, Energy Efficient) |
| Physical Dimensions & Weight | |
| Exterior Dimensions (W x D x H) | 26.50" W (ports closed) / 34.50" W (ports open) x 29.75" D x 79.00" H with casters; 75.50" H without casters (673 x 756 x 2007 mm) |
| Interior Dimensions (W x D x H) | 20.00" x 19.50" x 49.25" (508 x 495 x 1251 mm) |
| Product Net Weight | 110 kg (243 lbs.) |
| Shipping Weight | 128 kg (283 lbs.) |
| Performance & Electrical Details | |
| Operating Temperature Range | 1°C to 10°C |
| Air Circulation | Forced draft air circulation |
| Compressor Power | 1/5 HP |
| Refrigerant | Natural R290 Hydrocarbon refrigerant (HFC-free) |
| Electrical Requirements | 115 V / 60 Hz, 3.0 Amps (Note: Unit requires two dedicated wall outlets) |
New
VWR VWR-HCCP-16-TS Performance Series Glass Door Chromatography Refrigerator Touch Screen and Data Logging, 16 cu. ft.
SKU: VWR-HCCP-16-TS
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
VWR VWR-HCCP-16-TS Performance Series Glass Door Chromatography Refrigerator Touch Screen and Data Logging, 16 cu. ft., ENERGY STAR certified

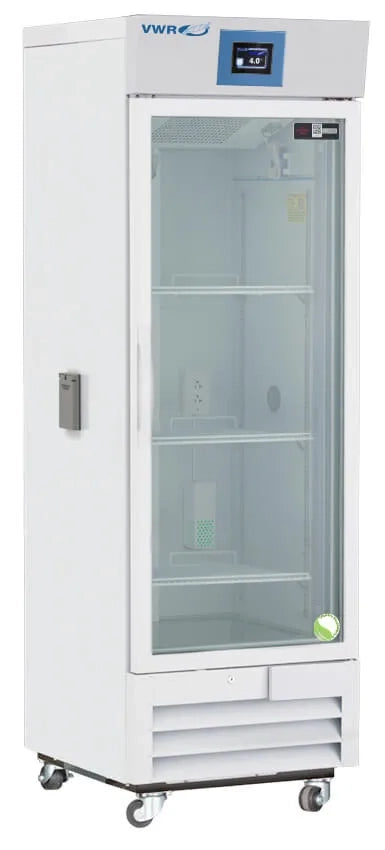

The VWR Performance Series Glass Door Chromatography Refrigerator (Catalog No: 76514-280 / Model: VWR-HCCP-16-TS), supplied by VWR International, is a high-performance 16 cubic foot (453 L) cold storage solution purpose-built for chromatography applications, analytical workflows, and sensitive laboratory environments requiring precise thermal control, integrated instrument power, and advanced data logging. Featuring a single self-closing swing glass door (right hinged, non-reversible), this unit combines exceptional energy efficiency with full inventory visibility in a space-saving footprint.
Engineered specifically for chromatography equipment integration, the cabinet comes equipped with one internal GFCI-protected duplex electrical outlet and two 2" access ports featuring spring-loaded, self-closing gasketed metal covers. Thermal management and system intelligence are powered by a password-protected Touch Screen Digital Temperature Display and Alarm Module. The user interface displays sample-simulated digital temperature readings with 0.1° resolution (selectable °C or °F), an active temperature scale bar display, a real-time operational clock, an electronic troubleshooting guide, and an electronic QR code for instant manual and support access.
The system maintains a stable operating temperature range of 1°C to 10°C using forced draft air circulation and an automated cycle defrost mechanism. Tracking and security are managed by dual sensing probes (1 air probe and 1 sample bottle probe), an advanced hydrocarbon detector, and comprehensive alarms (audible/visual high/low temperature, sensor error, power failure, door ajar, and low battery alerts). Data management features include integrated temperature data logging, a USB port for data export and software updates, a digital 24-hour temperature chart, a 4-20mA output, and remote alarm contacts.

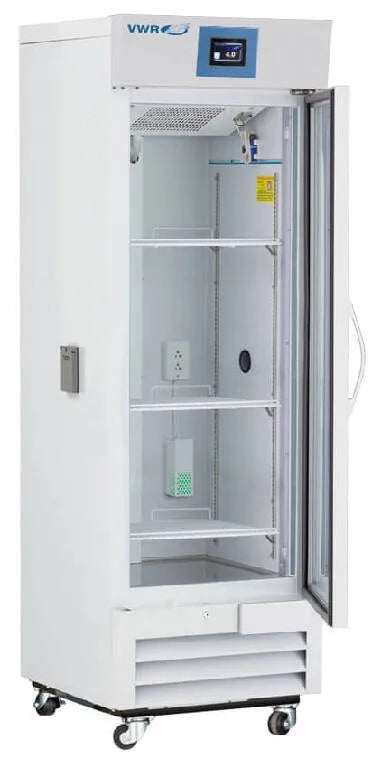

Interior organization includes three heavy-duty white powder-coated steel shelves (adjustable in 1/2" increments) and safety-shielded, switch-controlled LED interior lighting. Built with durable white powder-coated steel interior and exterior surfaces insulated with high-density urethane foam, the cabinet includes a keyed door lock, a magnetic gasket for a positive seal, a heavy-duty door handle, a 3/4" probe access port, and 3.5" swivel casters. Operating on eco-friendly R290 natural hydrocarbon refrigerant, this energy-efficient unit is ENERGY STAR certified and ETL listed.
Features:
- Chromatography Integration Ready: Equipped with 1 internal GFCI-protected duplex electrical outlet and 2 two-inch access ports with spring-loaded, self-closing gasketed metal covers for seamless instrumentation setup.
- Touch Screen & Advanced Data Logging: Features a password-protected touch-screen display, integrated temperature data logging, USB export port, digital 24-hour temperature chart, 4-20mA output, and QR code support.
- Comprehensive Security & Monitoring: Features extensive audible and visual alarms (high/low temp, sensor error, power failure, door ajar, low battery), an advanced hydrocarbon detector, and remote alarm contacts.
- Microprocessor Temperature Control: Operates across an adjustable temperature range of 1°C to 10°C with forced draft air circulation and automatic cycle defrost.
- Dual Sensing Probes & Sample Simulation: Utilizes 2 sensing probes (1 air probe and 1 sample bottle probe) with 0.1° resolution for precise sample tracking.
- Flexible Interior Organization: Includes 3 adjustable white powder-coated steel shelves (adjustable in 1/2" increments) and switch-controlled interior LED lighting.
- Eco-Friendly R290 Hydrocarbon Refrigerant: Operates on natural R290 refrigerant for zero ozone depletion, high energy efficiency, and ENERGY STAR certification.
- Safety & Warranty Compliance: ETL listed design backed by a 3-year parts and labor warranty plus an additional 2-year compressor parts warranty.
Specifications:
