| Overview | |
|---|---|
| Product Name | VWR Performance Series Glass Door Chromatography Refrigerator |
| VWR Catalog No | 76514-284 |
| Model Code | VWR-HCCP-26-TS |
| Supplier | VWR International |
| Capacity | 26 cu. ft. (736 L) |
| Door Type | 1 swing glass door (self-closing, right hinged, non-reversible) |
| Defrost System | Cycle defrost |
| Shelves | 4 adjustable shelves (adjustable in 1/2" increments) |
| Control System | Microprocessor controller with Touch Screen Display Module (Password Protected) |
| Chromatography Utilities | 1 GFCI protected duplex electrical outlet, 2 two-inch access ports (with self-closing metal covers) |
| Security | Keyed door lock, password protection, advanced hydrocarbon detector |
| Alarms | High/low temperature, sensor error, power failure, door ajar, low battery (audible, visual, remote) |
| Probes | Dual probes (1 air probe, 1 sample bottle probe) |
| Probe Access | 3/4" probe access port |
| Data Management | Data logging, USB port, 24-hr digital chart, 4-20mA output, remote contacts |
| Lighting | Switch-controlled, safety-shielded interior LED light |
| Cabinet Material | White powder-coated steel interior and exterior |
| Insulation | High-density urethane foam cabinet insulation |
| Mobility | 3.5" swivel casters included |
| General Warranty | Three-year parts and labor warranty |
| Compressor Warranty | Two-year additional compressor parts warranty |
| Certifications & Compliance | ENERGY STAR Certified, ETL Listed, Environmentally Preferable (Safer Human & Environmental Health, Energy Efficient) |
| Physical Dimensions & Weight | |
| Exterior Dimensions (W x D x H) | 29.875" W (ports closed) / 37.875" W (ports open) x 36.50" D x 81.75" H with casters; 78.25" H without casters (759 x 927 x 1988 mm) |
| Interior Dimensions (W x D x H) | 23.75" x 28.00" x 52.50" (603 x 711 x 1334 mm) |
| Product Net Weight | 143 kg (315 lbs.) |
| Shipping Weight | 161 kg (355 lbs.) |
| Performance & Electrical Details | |
| Operating Temperature Range | 1°C to 10°C |
| Air Circulation | Forced draft air circulation |
| Compressor Power | 1/5 HP |
| Refrigerant | Natural R290 Hydrocarbon refrigerant (HFC-free) |
| Electrical Requirements | 115 V / 60 Hz, 3.0 Amps (Note: Unit requires two dedicated wall outlets) |
New
VWR VWR-HCCP-26-TS Performance Series Glass Door Chromatography Refrigerator Touch Screen and Data Logging, 26 cu. ft.
SKU: VWR-HCCP-26-TS
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
VWR VWR-HCCP-26-TS Performance Series Glass Door Chromatography Refrigerator Touch Screen and Data Logging, 26 cu. ft., Comprehensive Security and Monitoring, Dual Sensing Probes

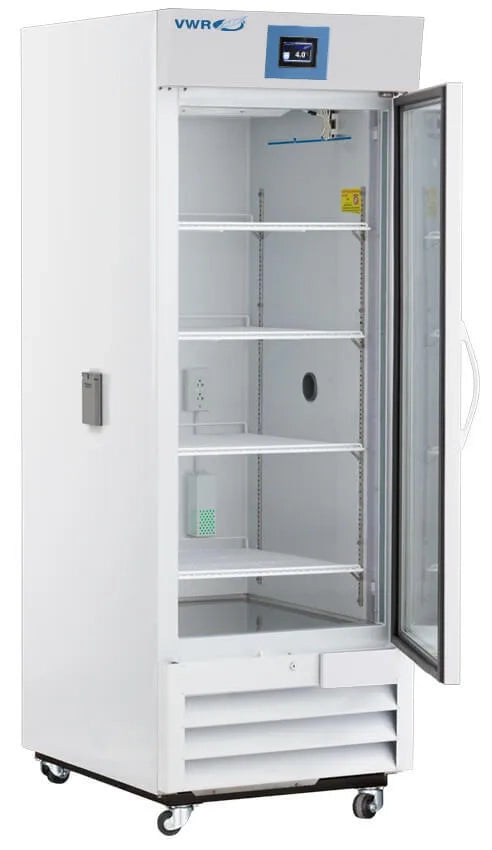

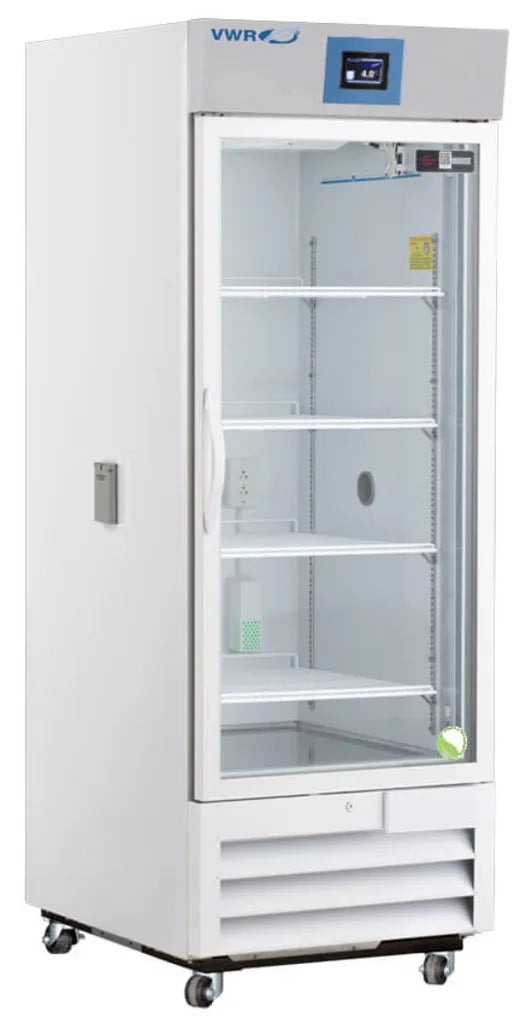

The VWR Performance Series Glass Door Chromatography Refrigerator (Catalog No: 76514-284 / Model: VWR-HCCP-26-TS), supplied by VWR International, is a high-performance 26 cubic foot (736 L) cold storage solution purpose-built for chromatography applications, analytical workflows, and sensitive laboratory environments requiring precise thermal control, integrated instrument power, and advanced data logging. Featuring a single self-closing swing glass door (right hinged, non-reversible), this unit combines exceptional energy efficiency with full inventory visibility in a spacious freestanding footprint.
Engineered specifically for chromatography equipment integration, the cabinet comes equipped with one internal GFCI-protected duplex electrical outlet and two 2" access ports featuring spring-loaded, self-closing gasketed metal covers. Thermal management and system intelligence are powered by a password-protected Touch Screen Digital Temperature Display and Alarm Module. The user interface displays sample-simulated digital temperature readings with 0.1° resolution (selectable °C or °F), an active temperature scale bar display, a real-time operational clock, an electronic troubleshooting guide, and an electronic QR code for instant manual and support access.
The system maintains a stable operating temperature range of 1°C to 10°C using forced draft air circulation and an automated cycle defrost mechanism. Tracking and security are managed by dual sensing probes (1 air probe and 1 sample bottle probe), an advanced hydrocarbon detector, and comprehensive alarms (audible/visual high/low temperature, sensor error, power failure, door ajar, and low battery alerts). Data management features include integrated temperature data logging, a USB port for data export and software updates, a digital 24-hour temperature chart, a 4-20mA output, and remote alarm contacts.
Interior organization includes four heavy-duty white powder-coated steel shelves (adjustable in 1/2" increments) and safety-shielded, switch-controlled LED interior lighting. Built with durable white powder-coated steel interior and exterior surfaces insulated with high-density urethane foam, the cabinet includes a keyed door lock, a magnetic gasket for a positive seal, a heavy-duty door handle, a 3/4" probe access port, and 3.5" swivel casters. Operating on eco-friendly R290 natural hydrocarbon refrigerant, this energy-efficient unit is ENERGY STAR certified and ETL listed.
Features:
- Chromatography Integration Ready: Equipped with 1 internal GFCI-protected duplex electrical outlet and 2 two-inch access ports with spring-loaded, self-closing gasketed metal covers for seamless instrumentation setup.
- Touch Screen & Advanced Data Logging: Features a password-protected touch-screen display, integrated temperature data logging, USB export port, digital 24-hour temperature chart, 4-20mA output, and QR code support.
- Comprehensive Security & Monitoring: Features extensive audible and visual alarms (high/low temp, sensor error, power failure, door ajar, low battery), an advanced hydrocarbon detector, and remote alarm contacts.
- Microprocessor Temperature Control: Operates across an adjustable temperature range of 1°C to 10°C with forced draft air circulation and automatic cycle defrost.
- Dual Sensing Probes & Sample Simulation: Utilizes 2 sensing probes (1 air probe and 1 sample bottle probe) with 0.1° resolution for precise sample tracking.
- Flexible Interior Organization: Includes 4 adjustable white powder-coated steel shelves (adjustable in 1/2" increments) and switch-controlled interior LED lighting.
- Eco-Friendly R290 Hydrocarbon Refrigerant: Operates on natural R290 refrigerant for zero ozone depletion, high energy efficiency, and ENERGY STAR certification.
- Safety & Warranty Compliance: ETL listed design backed by a 3-year parts and labor warranty plus an additional 2-year compressor parts warranty.
Specifications:
