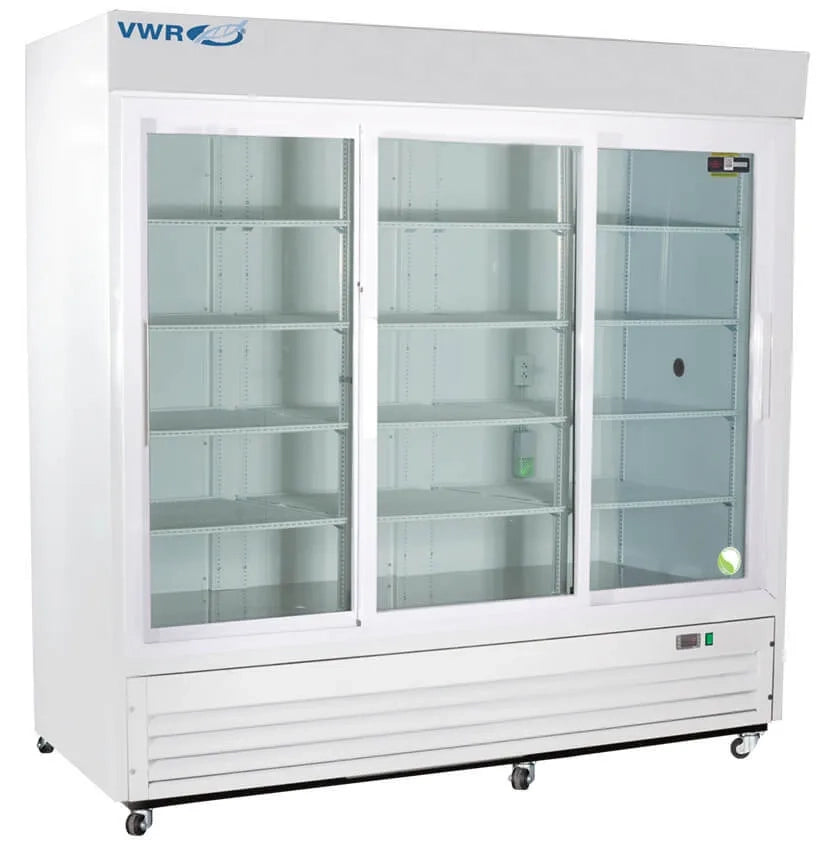

VWR VWR-HCCS-69 Standard Series Glass Door Chromatography Refrigerator, High-Capacity Space-Saving Design, Sliding Doors, 69 cu. ft., Microprocessor Temperature Control

The VWR Standard Series Glass Door Chromatography Refrigerator (VWR-HCCS-69) is an economical, high-performance, and massive-capacity cold storage solution engineered specifically for stable temperature control and large-scale chromatography setups in research, clinical, and industrial laboratories. Featuring an exceptionally spacious 69 cubic foot (1954 L) capacity and extended vertical clearance, this heavy-duty upright refrigerator easily accommodates multiple full-length chromatography columns, sensitive instrumentation, and extensive inventories of biological samples.

Designed to optimize high-throughput chromatography workflows, this unit features three sliding doors constructed with energy-efficient, double-pane vacuum-insulated glass. These self-closing sliding doors completely eliminate the need for front clearance, making this large-capacity unit a perfect fit for busy or narrow laboratory aisles. It also features a built-in GFCI-protected duplex electrical outlet to power instruments safely inside the chamber, alongside an advanced hydrocarbon detector for enhanced laboratory safety. A dedicated 2" access port with a spring-loaded, self-closing gasketed metal cover allows for the clean introduction of columns, lines, and external cabling without compromising internal temperature stability.

Integrated door handles, physical keyed locks, and magnetic door gaskets ensure a positive, airtight seal when closed. Inside, safety-shielded, switch-controlled LED lighting brightly illuminates the white powder-coated steel interior, which is configured with twelve heavy-duty wire shelves adjustable in 1/2" increments to offer maximum storage flexibility.

The refrigerator utilizes a precise microprocessor controller to maintain an adjustable operating temperature range of 1°C to 10°C, shown continuously on an external digital display. Backed by a high-efficiency forced-draft air circulation system, the cabinet maintains superb temperature uniformity and fast thermal recovery after openings. A dual-probe system (one air probe and one sample bottle probe) tracks conditions accurately. Safety alarms include audible and visual high/low temperature warnings, plus remote alarm contacts for building integration.

This eco-friendly unit runs on natural R290 hydrocarbon refrigerant to meet strict environmental standards and reduce utility costs, supported by high-density urethane foam cabinet insulation.

Please Note: This specialized chromatography refrigerator requires two (2) separate electrical outlets for full operation (one for the refrigeration system and one for the internal GFCI duplex outlet).

Features:

• High-Capacity Space-Saving Design: Features three self-closing, double-pane vacuum-insulated sliding glass doors that eliminate aisle interference while providing complete visual inventory access.
• Specialized Chromatography Integration: Equipped with one internal GFCI-protected duplex electrical outlet and a 2" access port featuring a spring-loaded, self-closing gasketed metal cover for instrument cables and lines.
• Advanced Hydrocarbon Detector: Features an integrated hydrocarbon leak detector to ensure maximum laboratory safety when housing sensitive analytical processes.
• Microprocessor Temperature Control: Precise digital controller and continuous simulated product temperature display allow easy monitoring of the 1°C to 10°C operating range.
• Forced Air Draft Circulation: High-performance fan-driven air circulation delivers superb cabinet-wide uniformity and fast temperature recovery after openings.
• Dual Probe Monitoring & Alarms: Incorporates two temperature probes (air and sample bottle) along with audible/visual high/low temperature alarms and remote alarm contacts.
• Twelve Adjustable Shelves: Outfitted with twelve sturdy wire shelves adjustable in 1/2" increments to maximize storage configuration and accommodate large-scale apparatus.
• Eco-Friendly R290 Refrigerant: Runs on natural hydrocarbon R290 refrigerant to maximize energy efficiency while protecting human and environmental health.
• High Mobility Casters: Mounted on 3.5" pre-installed swivel casters for effortless physical relocation and under-unit cleaning.
• Extended Compressor Warranty: Covered by a standard two-year parts and labor warranty, with an additional three-year warranty on compressor parts.

Specifications:
