VWR VWR-HCLP-36-TS Performance Series Glass Door Laboratory Refrigerator Touchscreen Data Logging, 36 cu. ft.

VWR  VWR-HCLP-36-TS Performance Series Glass Door Laboratory Refrigerator Touchscreen Data Logging, 36 cu. ft., Eco-Friendly R290 Hydrocarbon Refrigerant

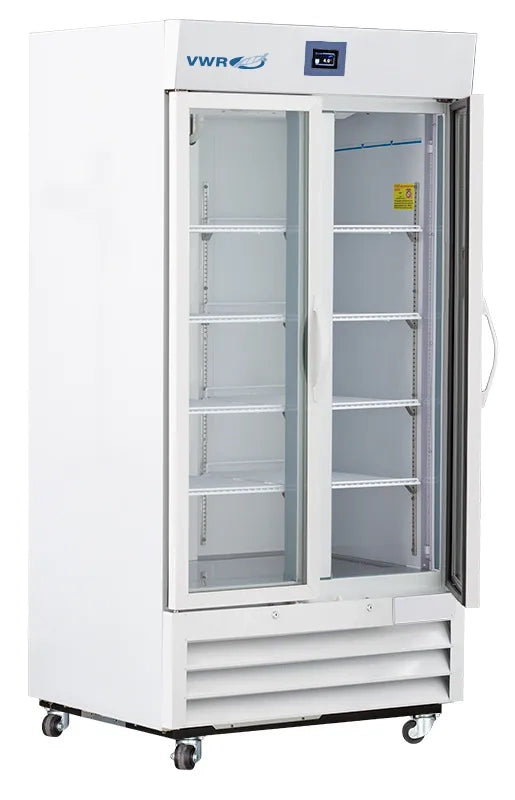

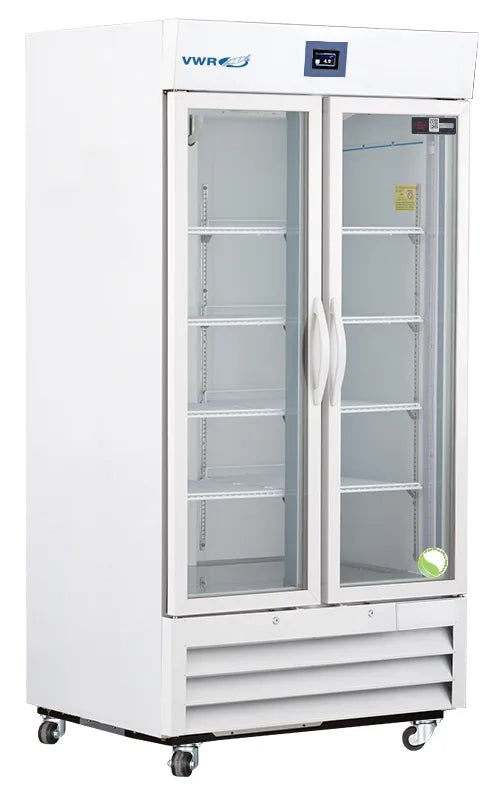

The VWR Performance Series Glass Door Laboratory Refrigerator (Catalog No: 76514-230 / Model: VWR-HCLP-36-TS), supplied by VWR International, is a heavy-duty 36 cubic foot (1019 L) cold storage solution engineered for critical research, medical, and clinical environments requiring ultra-precise thermal control and advanced digital data logging. Featuring two self-closing swing glass doors (right hinged, non-reversible), this unit combines energy efficiency, instant visual inventory inspection, and robust security in a spacious cabinet layout.

Designed for demanding laboratory workflows, thermal management is driven by a microprocessor temperature controller paired with an interactive Touchscreen Digital Temperature Display and Alarm Module. The password-protected control interface includes a sample-simulated digital display with 0.1° resolution (selectable °C or °F), an active temperature scale bar, a 24-hour digital temperature chart, and a 1-point resettable min/max history display. Onboard temperature data logging with a USB port enables convenient data export and software updates, while integrated diagnostic interfaces supply a 4-20mA output, an electronic troubleshooting guide, and a direct QR code for user manual and support access.

The system maintains a stable operating temperature range of 1°C to 10°C using forced draft air circulation and an automated cycle defrost mechanism. Temperature tracking is supported by dual sensing probes (air probe and sample bottle probe) and a comprehensive alarm suite featuring adjustable volume, audible and visual high/low temperature alerts, sensor error warnings, power failure notifications, low battery indicators, door-ajar alarms, remote alarm contacts, and an alarm validation system with mute and ring-back settings.

Interior organization includes eight adjustable shelves (adjustable in 1/2" increments) and safety-shielded, switch-controlled LED interior lighting. Built with durable white powder-coated steel interior and exterior surfaces insulated with high-density urethane foam, the cabinet features keyed door locks, magnetic gaskets for a positive seal, heavy-duty door handles, a 3/8" probe access port, and 3.5" swivel casters for effortless mobility. Operating on eco-friendly R290 natural hydrocarbon refrigerant, this high-efficiency unit is ETL listed.

Features:

• High Capacity & Dual Swing Glass Doors: Delivers 36 cu. ft. (1019 L) of internal capacity with 2 self-closing swing glass doors (right hinged, non-reversible) for quick inventory visibility.
• Advanced Touchscreen & Data Logging: Integrated touchscreen display module features password protection, 24-hour temperature charting, onboard data logging, and USB port for data transfer.
• Microprocessor Thermal Regulation: Operates across an adjustable temperature range of 1°C to 10°C with forced draft air circulation and automatic cycle defrost.
• Comprehensive Alarm Security System: Equipped with audible/visual high/low temperature, sensor error, power failure, low battery, and door-ajar alarms, plus remote alarm contacts and 4-20mA output.
• Dual Sensing Probes: Uses 2 sensing probes (1 air probe and 1 sample bottle probe) for accurate sample simulation display with 0.1° resolution.
• Flexible Interior Organization: Includes 8 heavy-duty white powder-coated steel shelves adjustable in 1/2" increments and switch-controlled interior LED lighting.
• Eco-Friendly R290 Hydrocarbon Refrigerant: Runs on natural R290 refrigerant for zero ozone depletion and high operational energy efficiency.
• Safety & Warranty Compliance: ETL listed design backed by a 3-year parts and labor warranty plus an additional 2-year compressor parts warranty.

Specifications:
