| Overview | |
|---|---|
| Product Name | VWR Plus Series Glass Door Laboratory Refrigerator |
| VWR Catalog No | 76514-252 |
| Model Code | VWR-HCLP-47 |
| Supplier | VWR International |
| Capacity | 47 cu. ft. (1331 L) |
| Door Type | 2 sliding glass doors (self-closing, double pane vacuum insulated) |
| Defrost System | Cycle defrost |
| Shelves | 8 adjustable shelves (adjustable in 1/2" increments) |
| Control System | Microprocessor controller with Digital Display & Alarm Module |
| Security | Keyed door locks |
| Alarms | Audible & visual high/low temperature, sensor error, and power failure alarms |
| Probes | Dual probes (1 air probe, 1 sample bottle probe) |
| Probe Access | 3/8" probe access port |
| Data Management | Resettable 1-point min/max history, remote alarm contacts |
| Lighting | Switch-controlled, safety-shielded interior LED lights |
| Cabinet Material | White powder-coated steel interior and exterior |
| Insulation | High-density urethane foam cabinet insulation |
| Mobility | 3.5" swivel casters included |
| General Warranty | Two-year parts and labor warranty |
| Compressor Warranty | Three-year additional compressor parts warranty |
| Certifications & Compliance | ETL Listed, Environmentally Preferable (Safer Human & Environmental Health, Energy Efficient) |
| Physical Dimensions & Weight | |
| Exterior Dimensions (W x D x H) | 54.125" x 33.25" x 81.75" with casters; 78.25" H without casters (1375 x 845 x 2076 mm) |
| Interior Dimensions (W x D x H) | 48.625" x 23.00" x 52.50" (1235 x 584 x 1334 mm) |
| Product Net Weight | 208 kg (458 lbs.) |
| Shipping Weight | 230 kg (508 lbs.) |
| Performance & Electrical Details | |
| Operating Temperature Range | 1°C to 10°C |
| Air Circulation | Forced draft air circulation |
| Compressor Power | 1/4 HP |
| Refrigerant | Natural R290 Hydrocarbon refrigerant (HFC-free) |
| Electrical Requirements | 115 V / 60 Hz, 4.5 Amps |
New
VWR VWR-HCLP-47 Plus Series Glass Door Laboratory Refrigerator Digital Display and Alarms, 47 cu. ft.
SKU: VWR-HCLP-47
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
VWR VWR-HCLP-47 Plus Series Glass Door Laboratory Refrigerator Digital Display & Alarms, 47 cu. ft., Microprocessor Temperature Control, Eco-Friendly R290 Hydrocarbon Refrigerant

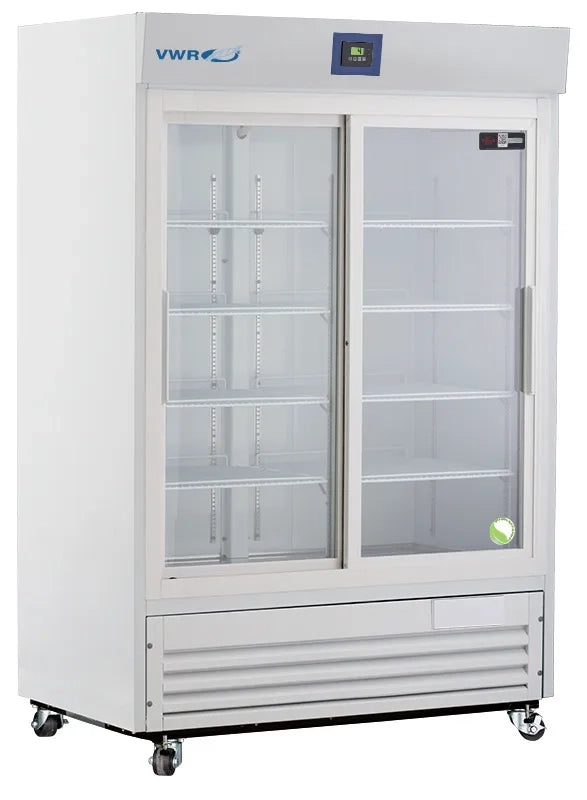

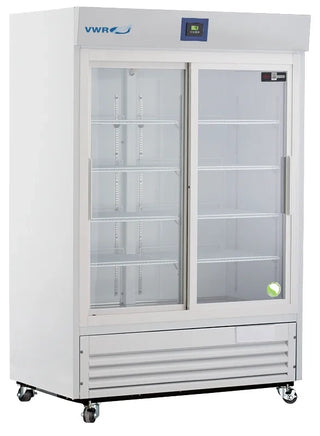

The VWR Plus Series Glass Door Laboratory Refrigerator (Catalog No: 76514-252 / Model: VWR-HCLP-47), supplied by VWR International, is an extra-large 47 cubic foot (1331 L) cold storage solution engineered for high-volume clinical, research, and industrial laboratory applications requiring precise thermal control, full inventory visibility, and robust sample protection. Featuring two self-closing, double-pane vacuum-insulated sliding glass doors, this refrigerator combines maximum energy efficiency with immediate visual inventory inspection in a heavy-duty cabinet design.
Designed for demanding laboratory workflows, thermal management is driven by a precision microprocessor temperature controller paired with a Digital Temperature Display and Alarm Module. The user interface provides sample-simulated digital temperature readings with 0.1° resolution (selectable °C or °F) and includes a 1-point resettable min/max temperature history log.
The system maintains a stable operating temperature range of 1°C to 10°C using forced draft air circulation and an automated cycle defrost mechanism. Temperature tracking is supported by dual sensing probes (1 air probe and 1 sample bottle probe) and a comprehensive security alarm system featuring audible and visual high/low temperature alerts, sensor error warnings, power failure alarms, remote alarm contacts, and alarm validation with mute and ring-back capabilities.
Interior organization includes eight heavy-duty white powder-coated steel shelves (adjustable in 1/2" increments) and safety-shielded, switch-controlled LED interior lighting. Built with durable white powder-coated steel interior and exterior surfaces insulated with high-density urethane foam, the cabinet features keyed door locks, magnetic gaskets for a positive seal, integrated door handles, a 3/8" probe access port, and 3.5" swivel casters for smooth mobility. Operating on eco-friendly R290 natural hydrocarbon refrigerant, this energy-efficient unit is ETL listed.
Features:
- Extra-Large Capacity & Double Pane Sliding Doors: Offers 47 cu. ft. (1331 L) storage capacity with 2 self-closing, energy-efficient double-pane vacuum-insulated sliding glass doors for rapid visual inventory checks.
- Microprocessor Temperature Control: Operates across an adjustable temperature range of 1°C to 10°C with forced draft air circulation and automatic cycle defrost.
- Digital Display & Sample Simulation: Equipped with a digital temperature display module offering 0.1° resolution (selectable °C or °F) and 1-point resettable min/max temperature history.
- Comprehensive Alarm Security: Features audible/visual high and low temperature alarms, sensor error alerts, power failure notifications, remote alarm contacts, and alarm validation with ring-back mute.
- Dual Sensing Probes: Utilizes 2 sensing probes (1 air probe and 1 sample bottle probe) for accurate sample temperature tracking.
- Flexible Interior Organization: Includes 8 adjustable white powder-coated steel shelves (adjustable in 1/2" increments) and switch-controlled LED interior lighting.
- Eco-Friendly R290 Hydrocarbon Refrigerant: Operates on natural R290 refrigerant for high operational energy efficiency and zero ozone depletion.
- Safety & Warranty Compliance: ETL listed design backed by a 2-year parts and labor warranty plus an additional 3-year compressor parts warranty.
Specifications:
