| Overview | |
|---|---|
| Product Name | VWR Plus Series Glass Door Laboratory Refrigerator |
| VWR Catalog No | 76514-258 |
| Model Code | VWR-HCLP-72 |
| Supplier | VWR International |
| Capacity | 72 cu. ft. (2039 L) |
| Door Type | 3 swing glass doors (self-closing, right hinged, non-reversible) |
| Defrost System | Cycle defrost |
| Shelves | 12 adjustable shelves (adjustable in 1/2" increments) |
| Control System | Microprocessor controller with Digital Display & Alarm Module |
| Security | Keyed door locks |
| Alarms | Audible & visual high/low temperature, sensor error, and power failure alarms |
| Probes | Dual probes (1 air probe, 1 sample bottle probe) |
| Probe Access | 3/8" probe access port |
| Data Management | Resettable 1-point min/max history, remote alarm contacts |
| Lighting | Switch-controlled, safety-shielded interior LED lights |
| Cabinet Material | White powder-coated steel interior and exterior |
| Insulation | High-density urethane foam cabinet insulation |
| Mobility | 3.5" swivel casters included |
| General Warranty | Two-year parts and labor warranty |
| Compressor Warranty | Three-year additional compressor parts warranty |
| Certifications & Compliance | ETL Listed, Environmentally Preferable (Safer Human & Environmental Health, Energy Efficient) |
| Physical Dimensions & Weight | |
| Exterior Dimensions (W x D x H) | 81.00" x 34.00" x 81.75" with casters; 78.25" H without casters (2057 x 864 x 1988 mm) |
| Interior Dimensions (W x D x H) | 76.00" x 24.75" x 52.25" (1930 x 629 x 1327 mm) |
| Product Net Weight | 314 kg (693 lbs.) |
| Shipping Weight | 337 kg (743 lbs.) |
| Performance & Electrical Details | |
| Operating Temperature Range | 1°C to 10°C |
| Air Circulation | Forced draft air circulation |
| Compressor Power | 1/2 HP |
| Refrigerant | Natural R290 Hydrocarbon refrigerant (HFC-free) |
| Electrical Requirements | 115 V / 60 Hz, 7.5 Amps |
New
VWR VWR-HCLP-72 Plus Series Glass Door Laboratory Refrigerator Digital Display and Alarms, 72 cu. ft.
SKU: VWR-HCLP-72
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
VWR VWR-HCLP-72 Plus Series Glass Door Laboratory Refrigerator Digital Display and Alarms, 72 cu. ft., Microprocessor Temperature Control, Dual Sensing Probes

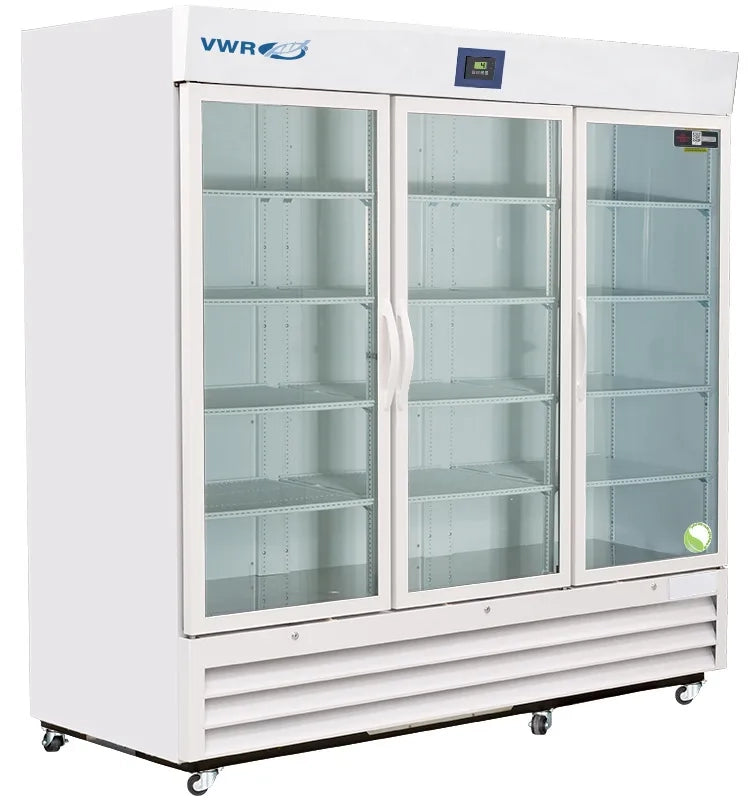

The VWR Plus Series Glass Door Laboratory Refrigerator (Catalog No: 76514-258 / Model: VWR-HCLP-72), supplied by VWR International, is a maximum-capacity 72 cubic foot (2039 L) cold storage solution engineered for high-density clinical, research, and industrial laboratory applications requiring precise thermal control, full inventory visibility, and robust sample protection. Featuring three self-closing swing glass doors (right hinged, non-reversible), this unit combines maximum energy efficiency with quick visual inspection capabilities in an ultra-spacious freestanding cabinet design.
Designed for demanding high-throughput laboratory workflows, thermal management is driven by a precision microprocessor temperature controller paired with a Digital Temperature Display and Alarm Module. The user interface provides sample-simulated digital temperature readings with 0.1° resolution (selectable °C or °F) and includes a 1-point resettable min/max temperature history log.
The system maintains a stable operating temperature range of 1°C to 10°C using forced draft air circulation and an automated cycle defrost mechanism. Temperature tracking is supported by dual sensing probes (1 air probe and 1 sample bottle probe) and a comprehensive security alarm system featuring audible and visual high/low temperature alerts, sensor error warnings, power failure alarms, remote alarm contacts, and alarm validation with mute and ring-back capabilities.

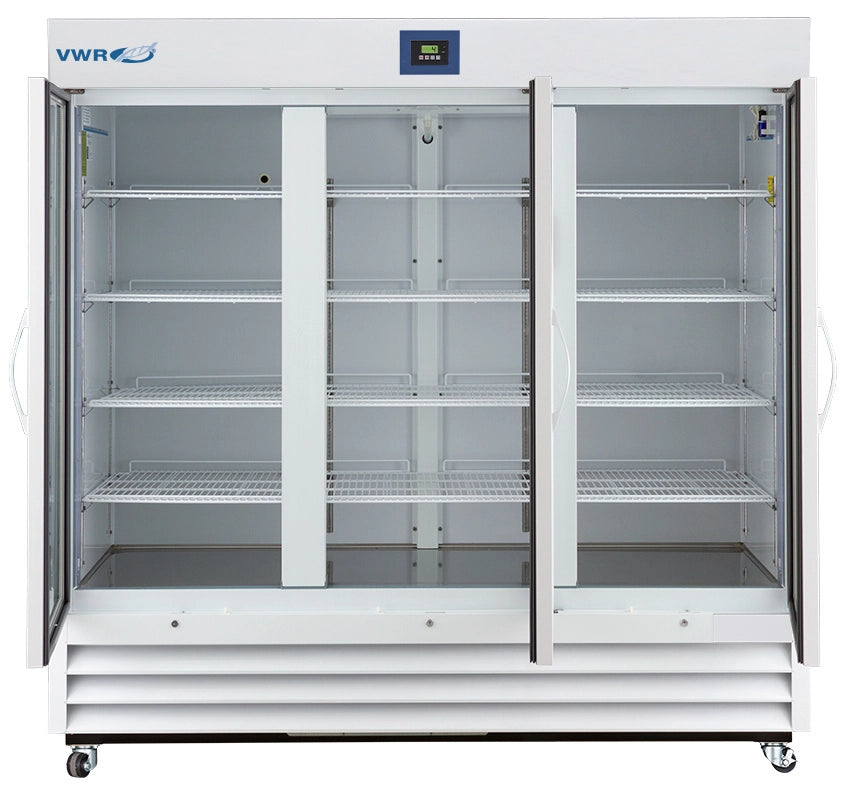

Interior organization includes twelve heavy-duty white powder-coated steel shelves (adjustable in 1/2" increments) and safety-shielded, switch-controlled LED interior lighting. Built with durable white powder-coated steel interior and exterior surfaces insulated with high-density urethane foam, the cabinet features keyed door locks, magnetic gaskets for a positive seal, heavy-duty door handles, a 3/8" probe access port, and 3.5" swivel casters for smooth mobility. Operating on eco-friendly R290 natural hydrocarbon refrigerant, this energy-efficient unit is ETL listed.
Features:
- Maximum Storage Capacity & Triple Swing Glass Doors: Delivers 72 cu. ft. (2039 L) of internal storage volume with 3 self-closing swing glass doors (right hinged, non-reversible) for quick visual inventory inspection without compromising thermal stability.
- Microprocessor Temperature Control: Operates across an adjustable temperature range of 1°C to 10°C with forced draft air circulation and automatic cycle defrost.
- Digital Display & Sample Simulation: Equipped with a digital temperature display module offering 0.1° resolution (selectable °C or °F) and 1-point resettable min/max temperature history.
- Comprehensive Alarm Security: Features audible/visual high and low temperature alarms, sensor error alerts, power failure notifications, remote alarm contacts, and alarm validation with ring-back mute.
- Dual Sensing Probes: Utilizes 2 sensing probes (1 air probe and 1 sample bottle probe) for accurate sample temperature tracking.
- Flexible Interior Organization: Includes 12 adjustable white powder-coated steel shelves (adjustable in 1/2" increments) and switch-controlled interior LED lighting.
- Eco-Friendly R290 Hydrocarbon Refrigerant: Runs on natural R290 refrigerant for zero ozone depletion and high operational energy efficiency.
- Safety & Warranty Compliance: ETL listed design backed by a 2-year parts and labor warranty plus an additional 3-year compressor parts warranty.
Specifications:
