VWR VWR-HCLP-72-TS Performance Series Glass Door Laboratory Refrigerator Touchscreen Data Logging, 72 cu. ft.

VWR VWR-HCLP-72-TS Performance Series Glass Door Laboratory Refrigerator Touchscreen Data Logging, 72 cu. ft., Eco-Friendly R290 Hydrocarbon Refrigerant, Dual Sensing Probes

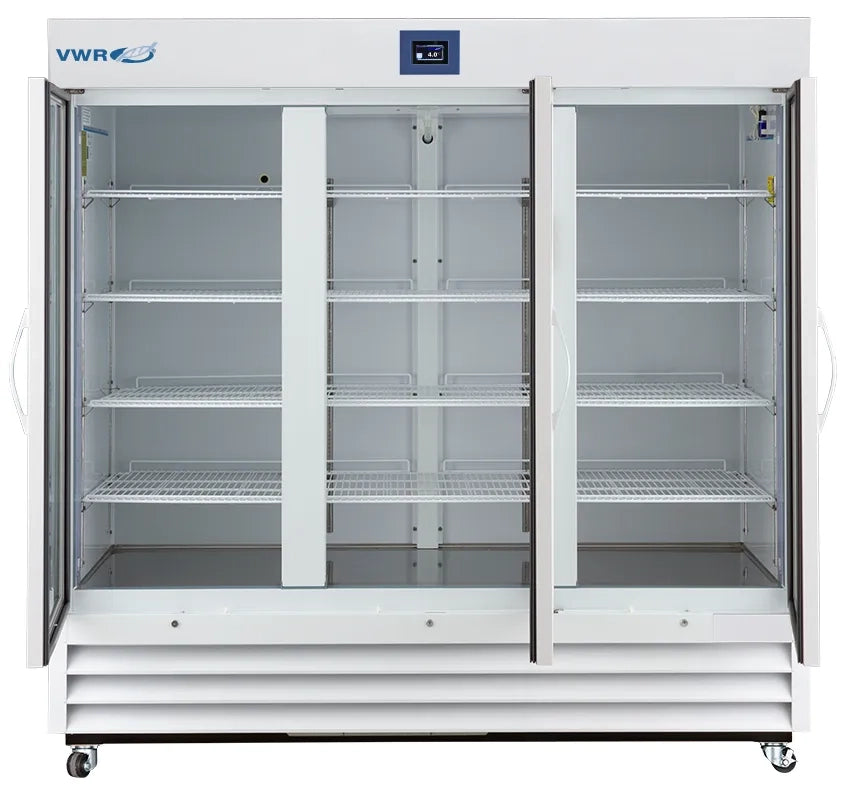

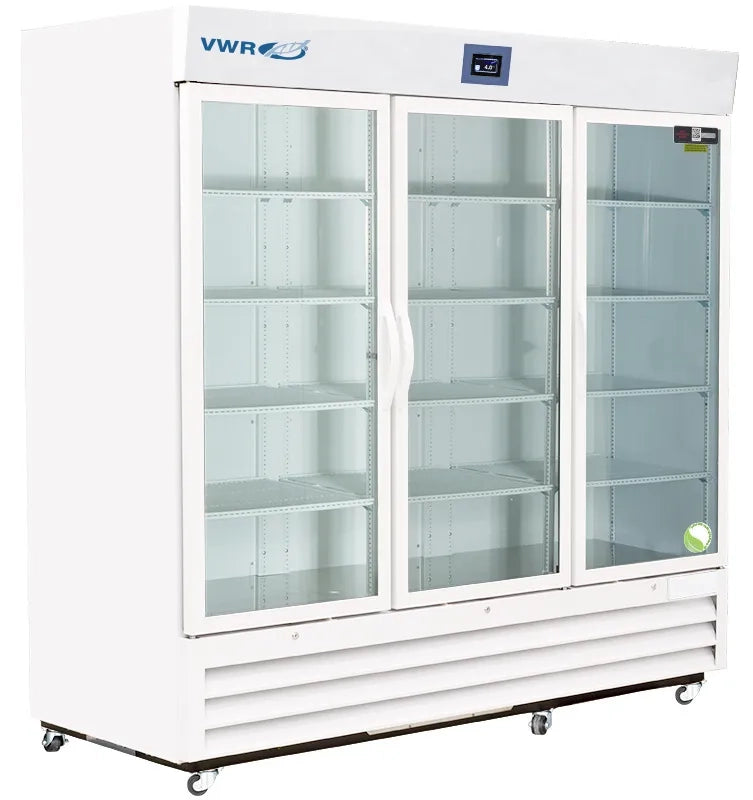

The VWR Performance Series Glass Door Laboratory Refrigerator (Catalog No: 76514-238 / Model: VWR-HCLP-72-TS), supplied by VWR International, is a maximum-capacity 72 cubic foot (2039 L) cold storage solution engineered for high-density research, clinical, and industrial environments requiring precise thermal control and advanced digital data logging. Featuring three self-closing swing glass doors (right hinged, non-reversible), this unit combines high energy efficiency, full visual inventory visibility, and robust physical security in an ultra-spacious cabinet design.

Designed for demanding high-throughput laboratory workflows, thermal regulation is managed by a microprocessor temperature controller paired with an interactive Touchscreen Digital Temperature Display and Alarm Module. The password-protected control panel includes a sample-simulated digital display with 0.1° resolution (selectable °C or °F), an active temperature scale bar, a 24-hour digital temperature chart, and a 1-point resettable min/max history display. Onboard temperature data logging with a USB port enables seamless data export and firmware updates, while integrated diagnostic interfaces supply a 4-20mA output, an electronic troubleshooting guide, and a direct QR code for user manual and technical support access.

The system maintains a uniform operating temperature range of 1°C to 10°C using forced draft air circulation and an automated cycle defrost mechanism. Temperature tracking is supported by dual sensing probes (air probe and sample bottle probe) and a comprehensive alarm suite featuring adjustable volume, audible and visual high/low temperature alerts, sensor error warnings, power failure notifications, low battery indicators, door-ajar alarms, remote alarm contacts, and an alarm validation system with mute and ring-back settings.

Interior organization features twelve heavy-duty adjustable shelves (adjustable in 1/2" increments) and safety-shielded, switch-controlled LED interior lighting. Built with durable white powder-coated steel interior and exterior surfaces insulated with high-density urethane foam, the cabinet includes keyed door locks, magnetic gaskets for a positive seal, heavy-duty door handles, a 3/8" probe access port, and 3.5" swivel casters for smooth mobility. Operating on eco-friendly R290 natural hydrocarbon refrigerant, this high-capacity unit is ETL listed.

Features:

• Maximum Storage Capacity & Triple Swing Glass Doors: Delivers 72 cu. ft. (2039 L) of internal volume with 3 self-closing swing glass doors (right hinged, non-reversible) for quick visual inventory inspection.
• Advanced Touchscreen & Data Logging: Integrated touchscreen display module features password protection, 24-hour temperature charting, onboard data logging, and USB port for data transfer.
• Microprocessor Thermal Regulation: Operates across an adjustable temperature range of 1°C to 10°C with forced draft air circulation and automatic cycle defrost.
• Comprehensive Alarm Security System: Equipped with audible/visual high/low temperature, sensor error, power failure, low battery, and door-ajar alarms, plus remote alarm contacts and 4-20mA output.
• Dual Sensing Probes: Uses 2 sensing probes (1 air probe and 1 sample bottle probe) for accurate sample simulation display with 0.1° resolution.
• Flexible Interior Organization: Includes 12 heavy-duty white powder-coated steel shelves adjustable in 1/2" increments and switch-controlled interior LED lighting.
• Eco-Friendly R290 Hydrocarbon Refrigerant: Runs on natural R290 refrigerant for zero ozone depletion and high operational energy efficiency.
• Safety & Warranty Compliance: ETL listed design backed by a 3-year parts and labor warranty plus an additional 2-year compressor parts warranty.

Specifications:

Standard delivery typically takes 5-7 business days, while expedited shipping takes 2-3 business days
