| Product Name | VWR Standard Laboratory Refrigerator Solid Door with Natural Refrigerants |
| VWR Catalog No | 78177-922 |
| Model Code | VWR-HC-30R |
| Supplier | VWR International |
| Capacity | 30 cu. ft. (850 L) |
| Door Type | 1 solid swing door (right hinged, non-reversible, stainless steel handle) |
| Defrost System | Off-cycle defrost (no heat added) |
| Shelves | 5 adjustable shelves |
| Control System | Microprocessor temperature controller with variable frequency compressor control |
| Security | Keyed door lock |
| Alarms | High/low temperature (audible/visual), door ajar alarm, remote alarm contacts |
| Probes | Product simulator bottle with glass bead media |
| Probe Access | 3/4" rear wall access port |
| Lighting | Internal cabinet lighting |
| Cabinet Material | White powder-coated steel interior and exterior |
| Insulation | EPA-compliant high-density urethane foam cabinet insulation |
| Mobility & Installation | Leveling legs (requires minimum 4" clearance around back and sides) |
| General Warranty | Two-year parts and labor warranty |
| Compressor Warranty | Five-year compressor parts warranty |
| Certifications & Compliance | UL Listed (UL 60335-1 / UL 60335-2-89), cUL Listed (CSA C22.2 No. 120), EPA SNAP Compliant |
| Exterior Dimensions (W x D x H) | 35.75" W x 35.50" D x 72.50" H (908 x 902 x 1842 mm) |
| Interior Dimensions (W x D x H) | 32.00" W x 22.50" D x 65.00" H (813 x 572 x 1651 mm) |
| Door Swing / Open Depth | 30.50" door swing / 66.00" total depth with door open |
| Product Net Weight | 150 kg (330 lbs.) |
| Shipping Weight | 163 kg (360 lbs.) |
| Operating Temperature Range | 2°C to 10°C (minimum temperature limited to avoid freezing) |
| Cabinet Air Uniformity | +/- 1.6°C |
| Cabinet Air Stability | +/- 1.0°C |
| Maximum Temperature Variation | 3.6°C total cabinet variation |
| Pull Down Time | < 35 minutes to nominal operating temperature (empty) |
| Energy Consumption | < 1.5 kWh/day |
| Average Heat Rejection | 500 BTU/hr |
| Air Circulation | Forced draft circulation |
| Compressor Type | Hermetic, variable speed |
| Refrigerant | EPA SNAP compliant R600a Isobutane natural hydrocarbon |
| Electrical Requirements | 110-120V AC, 60 Hz, 3.1 Amps (requires 15A breaker, NEMA 5-15 receptacle) |
| Power Cord & Plug | NEMA 5-15P plug with 6 ft. long cord |
New
VWR WWR-HC-30R Standard Laboratory Refrigerator Solid Door with Natural Refrigerants, 30 cu. ft.
by
VWR
SKU: WWR-HC-30R
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
VWR WWR-HC-30R Standard Laboratory Refrigerator Solid Door with Natural Refrigerants, 30 cu. ft., Microprocessor and Variable Speed Control, Comprehensive Alarm Safeguards

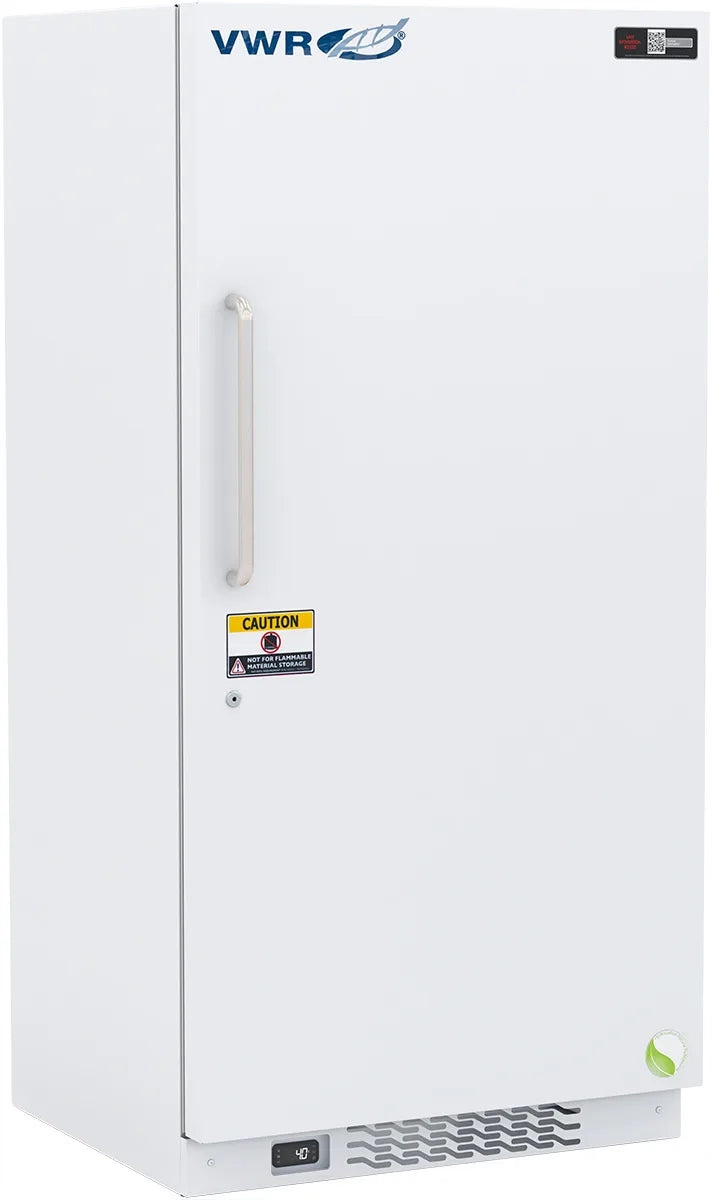

The VWR Standard Laboratory Refrigerator with Natural Refrigerants (Catalog No: 78177-922 / Model: VWR-HC-30R), supplied by VWR International, is a high-performance 30 cubic foot (850 L) scientific cold storage cabinet engineered for reliable and eco-conscious performance in scientific, clinical, and analytical laboratory environments. Featuring a single right-hinged solid swing door with a premium stainless steel door handle and magnetic door gasket, this unit provides maximum thermal protection and sample security in a spacious freestanding footprint.
Driven by a Microprocessor Temperature Controller with variable frequency compressor control, the unit maintains tight temperature uniformity (+/- 1.6°C) and stability (+/- 1.0°C) across an adjustable operating temperature range of 2°C to 10°C (with minimum temperature limited to prevent accidental sample freezing). The refrigeration system features a hermetic variable-speed compressor, static exterior wall condenser, fin-and-tube evaporator with a high-efficiency fan, and forced draft air circulation, coupled with an energy-efficient off-cycle defrost mechanism. System integrity is safeguarded by audible and visual high/low-temperature alarms, a door ajar alarm, and remote alarm contacts.

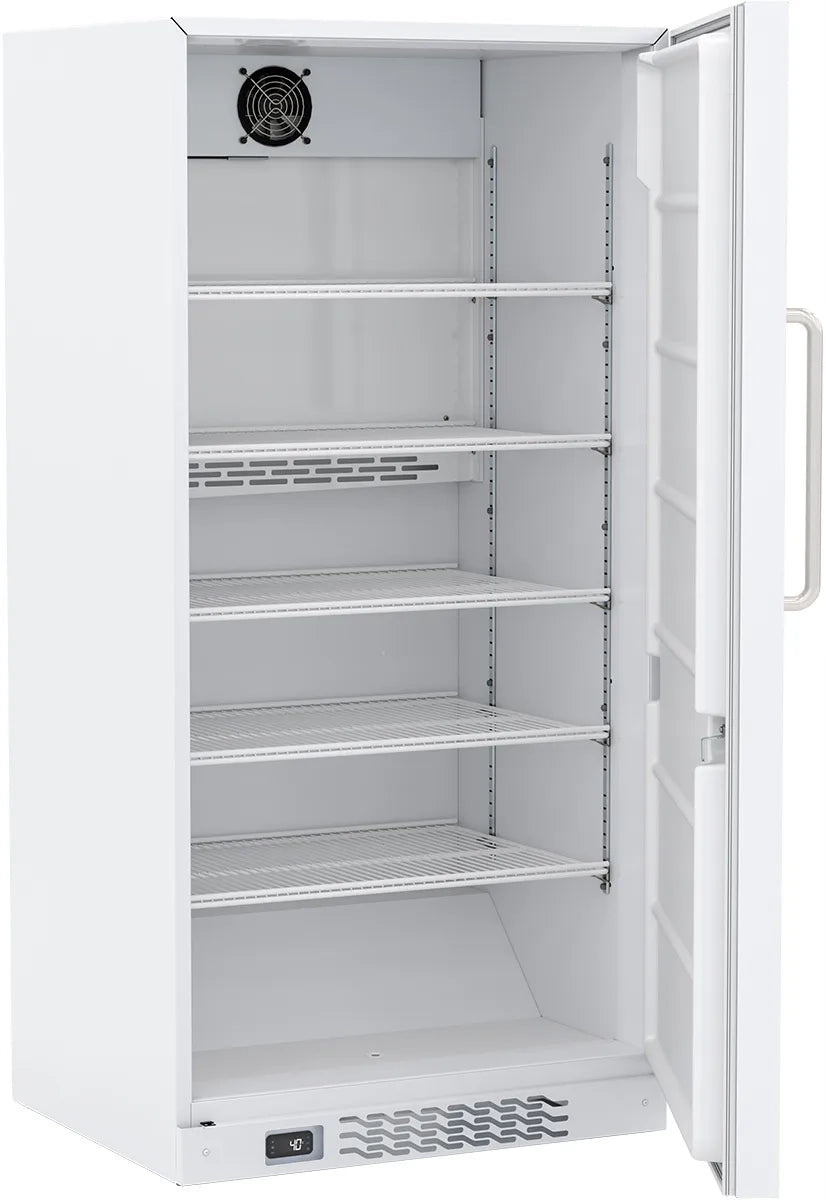

Interior organization includes five heavy-duty adjustable shelves and a 3/4" rear probe access port equipped with a buffered product simulator bottle with glass bead media. Built with a durable white powder-coated steel interior and exterior insulated with EPA-compliant high-density urethane foam, the cabinet includes leveling legs and a keyed door lock for access control. Utilizing eco-friendly, EPA SNAP-compliant R600a Isobutane natural hydrocarbon refrigerant, this energy-efficient unit consumes under 1.5 kWh/day and is UL and cUL listed.
Features:
- Microprocessor & Variable Speed Control: Features a microprocessor controller with variable frequency compressor control for tight temperature uniformity (+/- 1.6°C) and rapid pulldown (< 35 min empty).
- Eco-Friendly R600a Hydrocarbon Refrigerant: Operates on EPA SNAP-compliant R600a Isobutane refrigerant for zero ozone depletion, reduced environmental impact, and low energy consumption (< 1.5 kWh/day).
- Comprehensive Alarm Safeguards: Equipped with audible and visual high/low temperature alarms, door ajar alerts, and remote alarm contacts for central monitoring.
- Forced Draft Air Circulation & Off-Cycle Defrost: Delivers consistent temperature distribution across 2°C to 10°C using forced air draft cooling paired with an automated off-cycle defrost system (no heat added).
- Spacious Interior & Flexible Storage: Provides 30 cubic feet (850 L) of storage capacity with 5 adjustable shelves and a 3/4" rear probe access port.
- Solid Door & Access Security: Includes 1 solid right-hinged swing door with a stainless steel handle, magnetic gasket, and keyed lock for sample security.
- Buffered Temperature Sensing: Equipped with a product simulator probe bottle containing glass bead media for accurate sample temperature simulation.
- Safety & Warranty Compliance: UL/cUL listed design backed by a 2-year parts and labor warranty plus a 5-year compressor parts warranty.
Specifications:
