Wellell PD07702 Optima Turn System with Stretch Cover,Lateral Rotation Mattress,E0277

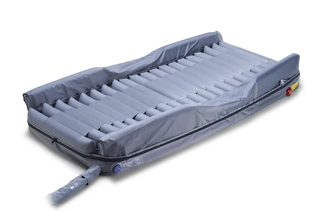

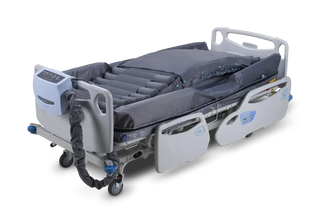

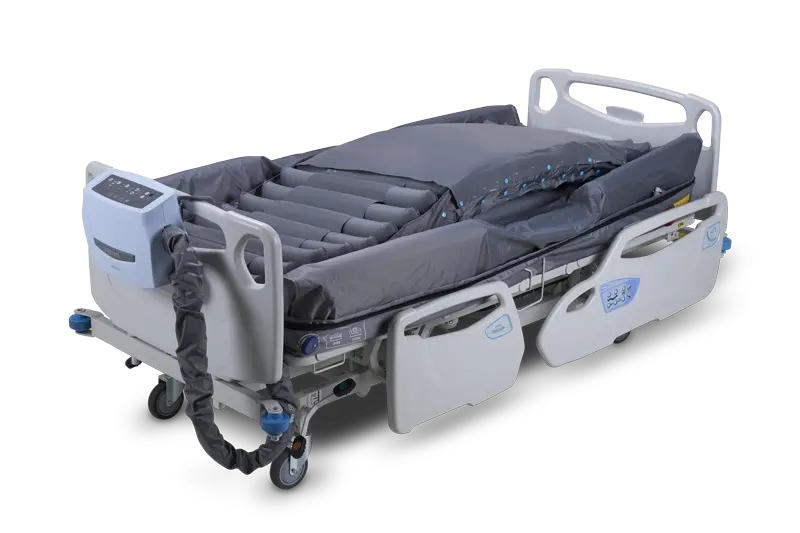

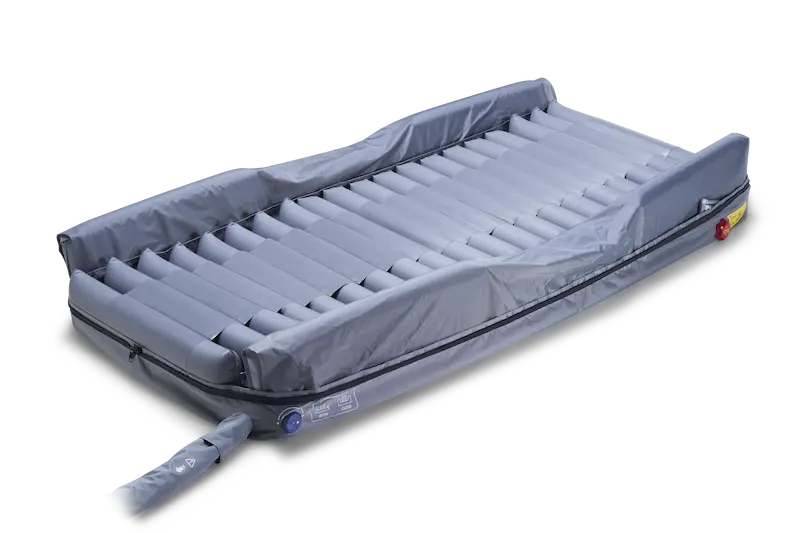

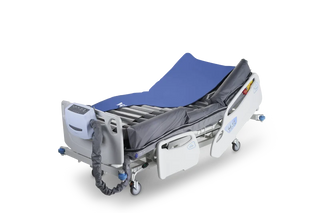

The Wellell PD07702 Optima Turn System is an advanced automated lateral rotation mattress designed to improve pressure injury prevention while reducing caregiver workload. Combining alternating pressure therapy with automated turning functionality, the system helps provide consistent repositioning support for bedridden patients.
Multiple turning modes, adjustable turning angles, and pressure redistribution technology work together to improve patient comfort and promote effective pressure relief. Featuring a durable 4-way stretch PU cover with welded seams, side bolsters for added safety, and automated therapy controls, the Optima Turn System is an ideal support surface solution for hospitals, long-term care facilities, and acute care environments.
Features
• Automated lateral rotation therapy helps reduce caregiver workload
• Alternating pressure therapy supports pressure injury prevention
• Continuous Low Pressure (CLP) therapy mode
• Left, right, and left-right turning modes
• Adjustable turning angles of 10°, 20°, and 30°
• Automated turning intervals of 1, 2, 3, or 4 hours
• Skin check mode allows quick left and right positioning
• Seat inflation mode improves patient support while seated
• Side bolsters enhance patient safety during turning
• Side bolster control knob simplifies patient transfer
• Built-in safety mechanism prevents turning mode activation when bolsters are not fully inflated
• Turning-cell ventilation connectors support emergency return to supine position
• Lower border side bolster design helps prevent patient slipping
• 4-way stretch PU cover promotes comfort and pressure redistribution
• Welded seams help improve moisture resistance and infection control
• Automated repositioning may reduce caregiver requirements from multiple caregivers to one
Specification
| Model | PD07702 |
| HCPCS Code | E0277 |
| Product Name | Optima Turn System |
| Mattress Type | Replacement Mattress |
| Therapy Modes | Alternating, CLP, Seat Inflation |
| Turning Modes | Left, Right, Left-Right |
| Turning Angles | 10°, 20°, 30° |
| Turning Cycle | 1, 2, 3, 4 Hours |
| Mattress Length | 78.7 in |
| Mattress Width | 35.4 in |
| Cell Height | 5 in |
| Side Bolster Height | 10 in |
| Number of Air Cells | 20 |
| Mattress Weight | 27.5 lbs |
| Maximum Patient Weight | 397 lbs |
| Top Cover Material | 4-Way Stretch PU, Polyester Cover with Welded Seams |
| Cell Material | TPU |

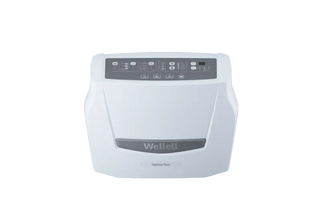

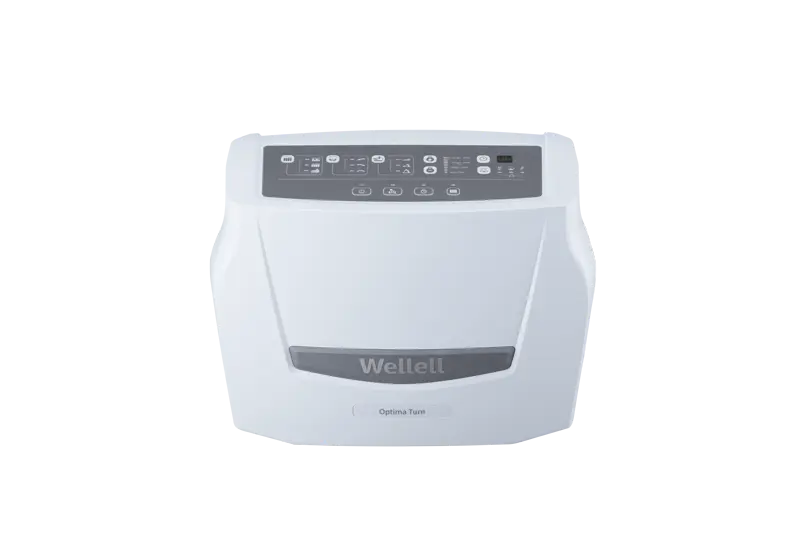

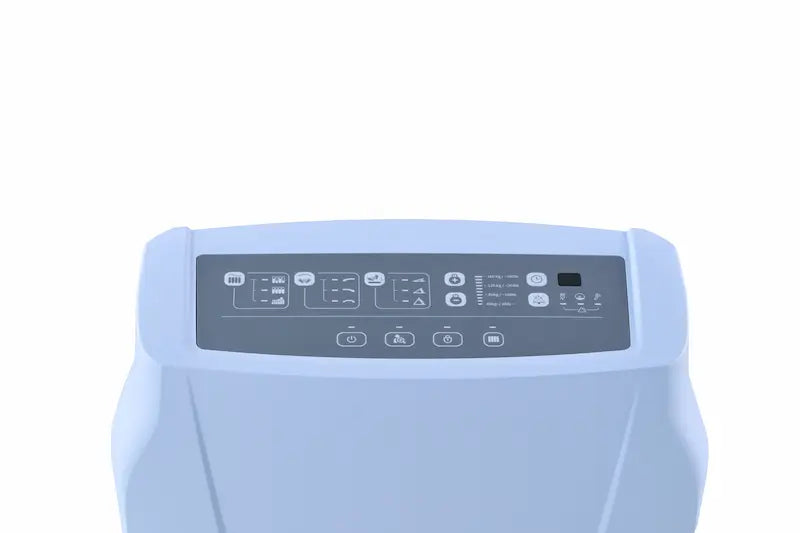

| Pump Dimensions | 13.4 x 6.5 x 10.2 in |
| Pump Weight | 9.9 lbs |
| Supply Voltage | 110-120V / 60Hz |
| Case Material | Fire Retardant ABS |
| Operating Cycle | 10 / 15 / 20 / 25 min (Alternating), 1 / 2 / 3 / 4 hrs (Turning) |
| Pump Protection | IP21 Water Resistant |
| Standards | EN597-1, EN597-2 |
| Compliance | RoHS, WEEE |
