"ADA compliant" appears on a lot of refrigerator listings, and most buyers read it as a single property: the unit is short enough to fit under an accessible counter. That is part of it and it is the easy part. The harder question, and the one that separates a specification that works from one that merely passes a glance, is whether a person using a wheelchair can actually reach what is inside.
An ADA undercounter refrigerator has to satisfy two different things at once: a dimensional limit set by the counter above it, and a reach range set by the person in front of it. Doors satisfy the first easily and the second poorly. That gap is the reason two-drawer refrigerators exist as a distinct product category, and it is the main subject of this guide.
Who This Guide Is For
Architects and designers specifying medical or clinical millwork, practice owners planning a new build or renovation, facilities and construction managers on healthcare fit-outs, dental and medical office owners subject to ADA public accommodation requirements, and procurement staff who have been handed a drawing that says "ADA compliant refrigerator" with no further detail.
What This Guide Covers
What the 2010 ADA Standards actually require of counters, clear floor space, knee clearance and reach ranges, how those translate to refrigerator selection, why drawer units address reach in a way door units cannot, the knee clearance conflict that catches out millwork layouts, panel-ready options for integrated cabinetry, and ADA-height medical units for vaccine and pharmacy storage. This is a general guide to the standards, not a substitute for professional code review on your project.
Quick Start: Browse ADA Options
Already know the width you need? Browse the collections for drawer and built-in ADA units.
Table of Contents
- What the ADA Standards Actually Require
- Reach Range: The Requirement Most Specs Miss
- Why Drawers Solve What Doors Cannot
- Two-Drawer Refrigerators by Width
- Drawer Freezers and Panel-Ready Options
- The Knee Clearance Conflict
- When a Door Unit Is Still the Right Answer
- ADA Height for Vaccine and Pharmacy Storage
- Built-In Means Front Ventilation
- Panel-Ready and Integrated Cabinetry
- Does Every Refrigerator Have to Be Accessible?
- Specification Mistakes That Repeat
- ADA Refrigerator Comparison Table
- Specification Checklist
- Ordering & Smart Solutions
- Explore Related MediDepot Guides
- External References
- Frequently Asked Questions (FAQ)
What the ADA Standards Actually Require
Four provisions of the 2010 ADA Standards for Accessible Design bear on an undercounter refrigerator. None of them mentions refrigerators, which is part of why the topic gets muddled.
Section 902.3, surface height. The tops of accessible dining and work surfaces must be between 28 inches minimum and 34 inches maximum above the finished floor. This is where the familiar 34-inch figure comes from, and it sets the ceiling any undercounter appliance has to fit beneath.
Section 306, knee and toe clearance. Beneath an accessible work surface there must be knee clearance of at least 27 inches high and 30 inches wide, with defined depth, plus toe clearance below that. This is the space a wheelchair user's legs occupy when they pull up to the counter.
Section 305, clear floor space. A clear floor space of 30 by 48 inches positioned for forward approach must be provided at the element.
Section 308, reach ranges. For an unobstructed approach, the high reach is 48 inches maximum and the low reach is 15 inches minimum above the finished floor. Where the reach passes over an obstruction, the limits tighten further.
The first three are about the millwork. The fourth is about the appliance, and it is the one that decides whether a door unit or a drawer unit is appropriate.
Reach Range: The Requirement Most Specs Miss
Here is the part that gets overlooked. Section 308 sets a low reach minimum of 15 inches above the finished floor. Anything a person is expected to operate or retrieve should sit within the 15 to 48 inch band.
Now picture a conventional undercounter refrigerator with a hinged door, installed under a 34-inch counter. The cabinet interior runs from roughly floor level up to just under the counter. The top shelf sits comfortably in the reach band. The bottom of the cabinet does not. Contents on the lowest shelf sit below 15 inches, and retrieving them means reaching down and forward into a cabinet, past a door, from a seated position.
The unit is under 34 inches. It fits. It may be marketed as ADA compliant on that basis. And a wheelchair user still cannot practically get to a third of what is inside.
This is not a hypothetical objection. It is the everyday experience of using a low door-front cabinet from a seated position, and it is precisely the problem drawer units were designed to solve.

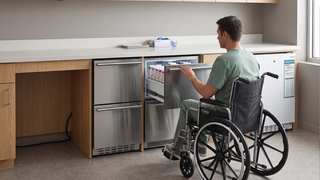

Why Drawers Solve What Doors Cannot
A drawer changes the geometry of the interaction. Instead of the user reaching into the cabinet, the cabinet brings its contents out to the user.
Three consequences follow, and all three matter.
Contents present at the top. When a drawer is open, everything inside is visible and reachable from above rather than buried at depth. Nothing is behind anything else, so the low reach problem largely disappears for the contents of that drawer.
No door swing. A hinged door needs clear space in front of it and swings into the approach path. In a corridor, a treatment room, or beside a wall, that swing conflicts with the 30 by 48 inch clear floor space rather than coexisting with it. A drawer extends straight forward into space the user already occupies.
Two independent compartments. A two-drawer unit lets you separate contents by category, which for a clinical setting means one drawer for one purpose and one for another, without opening both. It also means less cold air lost per access, since only one drawer opens at a time.
The trade-off is capacity. Drawer units hold less than a door unit of the same external dimensions, because the drawer boxes and slides consume space. That is a real cost and it is usually worth paying where accessibility is the driver.
Two-Drawer Refrigerators by Width
Drawer refrigerators come in a width ladder, and the choice is usually dictated by the cabinet opening the millwork provides.
The ADRD18 at 18 inches wide and 3.4 cubic feet suits narrow cabinet runs, treatment rooms and positions where a full 24-inch bay is not available. The ADRD24 at 24 inches wide and 4.8 cubic feet is the standard cabinet module and the most commonly specified size, since 24 inches is what most millwork is drawn around.
The ladder extends both ways. The ADRD15 at 15 inches wide and 2.76 cubic feet fits the tightest openings. The ADRD241 is an alternative 24-inch configuration at 3.7 cubic feet, and a stainless steel version is available where the finish is exposed.
Drawer Freezers and Panel-Ready Options
The same drawer principle extends to freezing, and to installations where the appliance needs to disappear into the cabinetry.
The ADFD243 brings the two-drawer format to freezing at 3.71 cubic feet in the standard 24-inch module. Where both temperature ranges are needed in an accessible run, pairing a drawer refrigerator with a drawer freezer keeps the interaction consistent for the user. An adjustable-height variant exists where the counter height is not fixed at the outset, and a stainless steel version for exposed installations.
The ADRD241PNR is panel-ready, which the PNR suffix denotes. The drawer fronts accept custom panels matching the surrounding cabinetry, so the appliance reads as joinery rather than equipment. Panels are supplied by the cabinetmaker, not with the unit. Panel-ready versions exist across the range, including the ADRD15PNR and ADRD18PNR.
The Knee Clearance Conflict
This is the point most likely to cause a problem late in a project, and it is a millwork issue rather than an appliance issue.
An accessible work surface requires knee clearance beneath it: roughly 27 inches of vertical space, 30 inches wide, so a wheelchair user can pull up to the counter. An undercounter refrigerator fills exactly that space.
The two cannot occupy the same bay. If you install a refrigerator under a stretch of counter, that stretch is no longer providing accessible knee clearance, whatever its height. If the design requires an accessible work surface in that room, it needs a separate open bay with nothing beneath it.
The practical resolution in a clinical millwork run is straightforward once you see it: place the appliances in bays that were never going to serve as the accessible work surface, and keep at least one 30-inch-wide bay clear underneath. Deciding this at drawing stage costs nothing. Discovering it at inspection costs a great deal.
When a Door Unit Is Still the Right Answer
Drawers are not automatically correct, and it is worth being honest about where a door unit remains the better specification.
When accessibility is not the driver. If the unit sits in a staff-only area with no ADA scoping obligation and no wheelchair-using staff, the reach argument does not apply and a door unit gives more capacity for the money.
When capacity matters more than access. A door unit of the same external size holds meaningfully more, because there are no drawer boxes or slides consuming volume.
When contents are bulky. Tall bottles, large containers and irregular items suit a shelf better than a drawer box.
When visual inventory is required. Glass-door units let staff confirm contents without opening. Drawers cannot offer this.
The question to ask is not "does this need to be ADA compliant" in the abstract, but "will a person using a wheelchair need to retrieve things from this unit". If yes, drawers. If no, judge on capacity and workflow.
ADA Height for Vaccine and Pharmacy Storage
Where the contents are vaccines or pharmacy stock rather than general supplies, the unit has to satisfy the accessibility requirement and the medical storage requirement at the same time. Both brands offer ADA-height units built for that.
The ADA404REF is a 20-inch wide built-in healthcare all-refrigerator at 3.32 cubic feet, sized to fit beneath an accessible counter. All-refrigerator means no internal freezer compartment, which removes the cold-spot risk that makes combination units unsuitable for medication.
The AFZ5PVBIADA is the freezer counterpart at 4 cubic feet, from the Pharma-Vac series, in a built-in ADA-height cabinet. The BIADA suffix carries both pieces of information: built-in capable and ADA height. Related options include the smaller AFZ2PVBIADA at 2.47 cubic feet, and versions with the DL2B factory data logger fitted. Our Accucold model number decoder explains the suffix system in full.
One ordering note carried over from that guide: on units certified to NSF/ANSI 456 or fitted with the DL2B logger, the door hinge is factory-set and cannot be reversed in the field. In a built-in installation where the door swing is constrained by adjacent cabinetry, decide the hinge direction before ordering.
Built-In Means Front Ventilation
A detail that determines whether the installation works at all, and one that has nothing to do with ADA.
A freestanding refrigerator vents to the sides or rear. Enclosed in a cabinet run, it recirculates its own warm air, works harder, holds temperature less well, and shortens its own life. Nothing about this is visible; it shows up only in the temperature record and eventually in a service call.
A built-in capable unit vents through the front, usually a grille at the base, so it can sit flush in cabinetry with no side or rear clearance.
Any refrigerator going into an ADA millwork run is, by definition, going into cabinetry. It must be a built-in capable model. The drawer units above are built for this; among door units, look for BI or built-in in the description rather than assuming.
Panel-Ready and Integrated Cabinetry
Panel-ready models, carrying a PNR or IF suffix depending on the brand, accept a custom front panel so the appliance matches the surrounding joinery.
Three practical points. Panels are not included, which the "panels not included" wording in the model description makes explicit; they come from the cabinetmaker. Panel weight and thickness limits apply, so the specification needs to reach the joiner before they build. And the finished face adds depth, which matters when the cabinet opening was drawn to the appliance dimensions rather than the finished dimensions.
Coordinate this early. A panel-ready appliance ordered without telling the cabinetmaker produces an appliance with no front, and a cabinetmaker working without the panel specification produces a panel that does not fit.
Does Every Refrigerator Have to Be Accessible?
Generally no, and this is worth understanding before over-specifying an entire project.
ADA requirements apply to places of public accommodation and to commercial facilities, and within them the standards use scoping provisions that determine how many of a given element must be accessible rather than requiring all of them. A refrigerator in a staff-only back room is a different proposition from one in a patient-facing area or an employee work station that must be accessible.
New construction and alterations carry stronger obligations than existing buildings, where barrier removal is required where readily achievable. The specifics depend on the facility type, the scope of work and applicable state and local codes, which frequently go beyond the federal baseline.
This is a question for the project architect or a code consultant rather than a supplier. What we can do is confirm which units meet the dimensional and installation requirements once you know what is being asked for.
Specification Mistakes That Repeat
Treating "fits under 34 inches" as the whole requirement. Height is the easy part. Reach range decides whether the contents are usable.
Putting the refrigerator in the bay that was meant to provide knee clearance. The two are mutually exclusive. Resolve it on the drawing.
Specifying a freestanding unit for a built-in location. It will run hot and hold temperature poorly, and the failure is invisible until the log shows it.
Ordering panel-ready without telling the cabinetmaker. Coordinate the panel specification, weight limit and finished depth before either party builds.
Forgetting the door swing in a built-in run. A door that opens into an adjacent cabinet or a corridor is a problem you cannot fix afterwards on certified or logger-equipped units.
Using a general-purpose unit for vaccine storage. ADA compliance and medical storage compliance are separate requirements. A unit can satisfy one and not the other.
ADA Refrigerator Comparison Table
| Model | Width | Capacity | Format | Best For | Shop |
|---|---|---|---|---|---|
| ADRD15 | 15" | 2.76 cu ft | 2 drawers | Tightest cabinet openings | View → |
| ADRD18 | 18" | 3.4 cu ft | 2 drawers | Narrow runs, treatment rooms | View → |
| ADRD24 | 24" | 4.8 cu ft | 2 drawers | Standard cabinet module | View → |
| ADRD241PNR | 24" | 3.7 cu ft | 2 drawers, panel ready | Integrated joinery | View → |
| ADFD243 | 24" | 3.71 cu ft | 2 drawers, freezer | Frozen storage in accessible run | View → |
| ADA404REF | 20" | 3.32 cu ft | Door, built-in | Healthcare storage, ADA height | View → |
| AFZ2PVBIADA | Compact | 2.47 cu ft | Door, built-in freezer | Vaccine freezer, ADA height | View → |
| AFZ5PVBIADA | Compact | 4 cu ft | Door, built-in freezer | Larger vaccine freezer, ADA height | View → |
Confirm exact cabinet dimensions, hinge direction and ventilation requirements against the specification sheet before finalising millwork.
Specification Checklist
Establish the requirement
- ✅ Confirm with the architect or code consultant what is actually scoped as accessible
- ✅ Determine whether a wheelchair user will retrieve contents from this unit
- ✅ If yes, specify drawers rather than a door
Resolve the millwork
- ✅ Counter height 34 inches maximum above finished floor
- ✅ Keep at least one bay clear for knee clearance; the refrigerator cannot occupy it
- ✅ Clear floor space of 30 by 48 inches at the approach
- ✅ Cabinet opening width matched to 15, 18, 20 or 24 inch unit
Check the appliance
- ✅ Built-in capable with front ventilation, not freestanding
- ✅ Door swing or drawer extension clear of adjacent cabinetry and traffic
- ✅ Hinge direction confirmed before order on certified or logger-equipped units
- ✅ Panel-ready specification sent to the cabinetmaker if applicable
If storing medication or vaccine
- ✅ All-refrigerator or dedicated medical unit, not a combination unit
- ✅ NSF/ANSI 456 certification if VFC participation applies
- ✅ Digital data logger with buffered probe, and alarms
- ✅ Lock if controlled substances are involved
Ordering & Smart Solutions
Need Help With Budget, Coverage, or Configuration?
Working From a Millwork Drawing?
Send us the cabinet opening dimensions, the counter height, which way the door or drawers need to open, and what will be stored. We'll confirm which units fit and flag anything that needs deciding before the joinery is built.
Explore Related MediDepot Guides
- Summit EQTemp Medical Refrigerator Guide
- Accucold Vaccine Refrigerator & Freezer Guide
- Accucold Model Numbers Explained
- Medical Grade Mini Fridge: What Qualifies
- Summit ACR31W vs ACR51W Undercounter Comparison
- Medical Refrigerators for Dental Practices
- Medical Refrigeration: The Complete Buying Hub
External References
- 2010 ADA Standards for Accessible Design
- US Access Board: Built-In Elements (Chapter 9)
- US Access Board: Reach Ranges (Section 308)
- CDC Vaccine Storage and Handling Toolkit
Frequently Asked Questions (FAQ)
Q1: What height does an ADA compliant refrigerator need to be?
The requirement is on the counter rather than the appliance: under the 2010 ADA Standards, accessible work surface tops must be between 28 and 34 inches above the finished floor. An undercounter refrigerator must fit beneath that, which is why ADA-height units are shorter than standard undercounter models.
Q2: Why are drawer refrigerators used for ADA installations?
Because of reach range. The standards set a low reach minimum of 15 inches, and in a door-front undercounter unit the lower contents sit below that, reached by leaning down and forward from a seated position. A drawer brings its contents out and presents them from above, which resolves the problem.
Q3: Can I put a refrigerator under an ADA accessible counter?
You can install it under a counter at accessible height, but that bay then no longer provides the knee clearance an accessible work surface requires. If the design needs an accessible work surface in that room, keep a separate bay clear underneath.
Q4: What is the difference between built-in and freestanding?
Built-in capable units vent through the front, usually a base grille, so they can sit flush in cabinetry. Freestanding units vent to the sides or rear and need clearance. Any unit going into a millwork run must be built-in capable, or it will run hot and hold temperature poorly.
Q5: What does PNR mean on a Summit model number?
Panel ready, meaning the fronts accept custom panels matching the surrounding cabinetry. The panels are not supplied with the unit; they come from the cabinetmaker, and the panel weight, thickness and finished depth need coordinating before the joinery is built.
Q6: Does every refrigerator in a facility have to be ADA compliant?
Generally no. The standards apply to places of public accommodation and commercial facilities, and use scoping provisions that determine how many of an element must be accessible rather than requiring all. A staff-only back room unit differs from a patient-facing one. Confirm scope with the project architect or a code consultant.
Q7: Are ADA drawer refrigerators suitable for vaccine storage?
ADA compliance and medical storage compliance are separate requirements, and a unit can meet one without the other. For vaccines, specify a dedicated medical unit meeting CDC storage requirements, ideally NSF/ANSI 456 certified where VFC participation applies, and pair it with a data logger and alarms.
Q8: What widths do ADA drawer refrigerators come in?
Commonly 15, 18 and 24 inches, with 24 inches being the standard cabinet module and the most frequently specified. Accucold built-in door units add a 20-inch option. Match the unit to the cabinet opening the millwork provides.
Q9: Can the door hinge be changed after installation?
On standard units usually yes, but on units certified to NSF/ANSI 456 or fitted with a factory data logger the hinge is factory-set and cannot be reversed in the field. In a built-in run where the swing is constrained, decide before ordering.
Q10: Does MediDepot carry ADA compliant refrigeration?
Yes, including Summit two-drawer refrigerators and freezers from 15 to 24 inches wide in standard, stainless and panel-ready finishes, and Accucold built-in ADA-height healthcare refrigerators and Pharma-Vac freezers. Browse: Summit and Accucold.
Specifying an Accessible Installation?
From a 15 inch drawer unit in a tight bay to a panel-ready 24 inch module or an ADA-height vaccine freezer, request a quote and we'll match the unit to your cabinet opening, ventilation and storage requirements.
*All technical specifications and workflow recommendations reflect general laboratory practice guidance. Always follow your manufacturer's Instructions for Use (IFU), your facility's Standard Operating Procedures (SOPs), and any applicable regulatory requirements for your sample type and application.
**Reviewed for workflow practicality by MediDepot Clinical Support Team. Always follow manufacturer instructions and your facility protocol.
***Disclaimer: This content is for informational purposes only and does not constitute medical advice. Always verify current compliance certifications (NSF/ANSI 456, NFPA 45, OSHA 29 CFR 1910.106), GLP/GMP requirements applicable to your facility, and your state's specific program requirements before purchase. Always consult your physician, healthcare provider, or qualified medical professional before using any medical products or following health-related guidance. MediDepot products do not diagnose, treat, cure, or prevent any medical condition.
