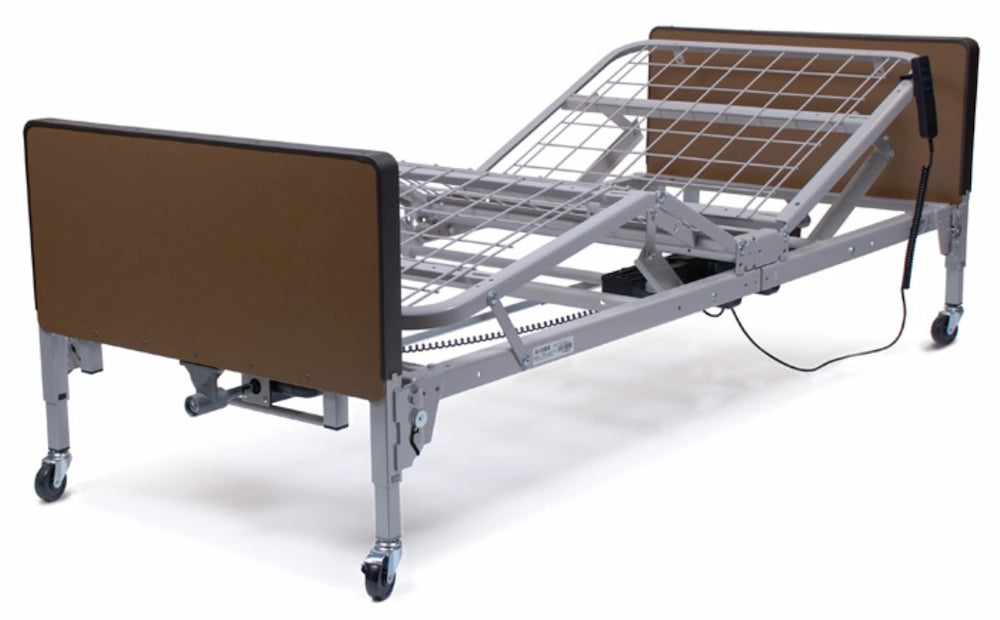

Lumex Patriot Semi-Electric Bed – Quiet & Smooth Operation, Welded Steel Frame, Grid Deck for Superior Support

The Lumex Patriot Semi-Electric Homecare Bed (US0208 series) is a high-performance, MADE-IN-THE-USA homecare bed designed for quiet, smooth operation and exceptional patient comfort in home care, long-term care, and rehabilitation settings. Featuring a strong welded steel frame with a grid deck sleep surface for better mattress support (no sag or bottoming out with heavier patients), it allows simultaneous or independent head/foot elevation with a single-hand control. During power outages, the head and foot sections lower using a single standard 9-volt battery. The bed assembles easily with just five components, has no external pinch points, and includes slots for proper rail placement with locking pins and lanyards to prevent loss. Optional 4-inch extension kits extend the bed length to 84" or 88". Available with fiberboard walnut or high-impact plastic bed-ends, and in multiple configurations with or without reversible foam mattress and full/half chrome rails.

Features:

• Grid deck sleep surface — stronger frame, better mattress support, no spring sag, easier to clean, no loose links or springs
• Quiet & smooth motor operation — ultimate in patient comfort and caregiver ease
• One-hand control — raises/lowers head and foot sections simultaneously or independently
• Battery backup — lowers head/foot during power failure with one 9V battery
• Welded steel frame — complete construction for maximum strength and stability
• Easy assembly — only five components; no external pinch points

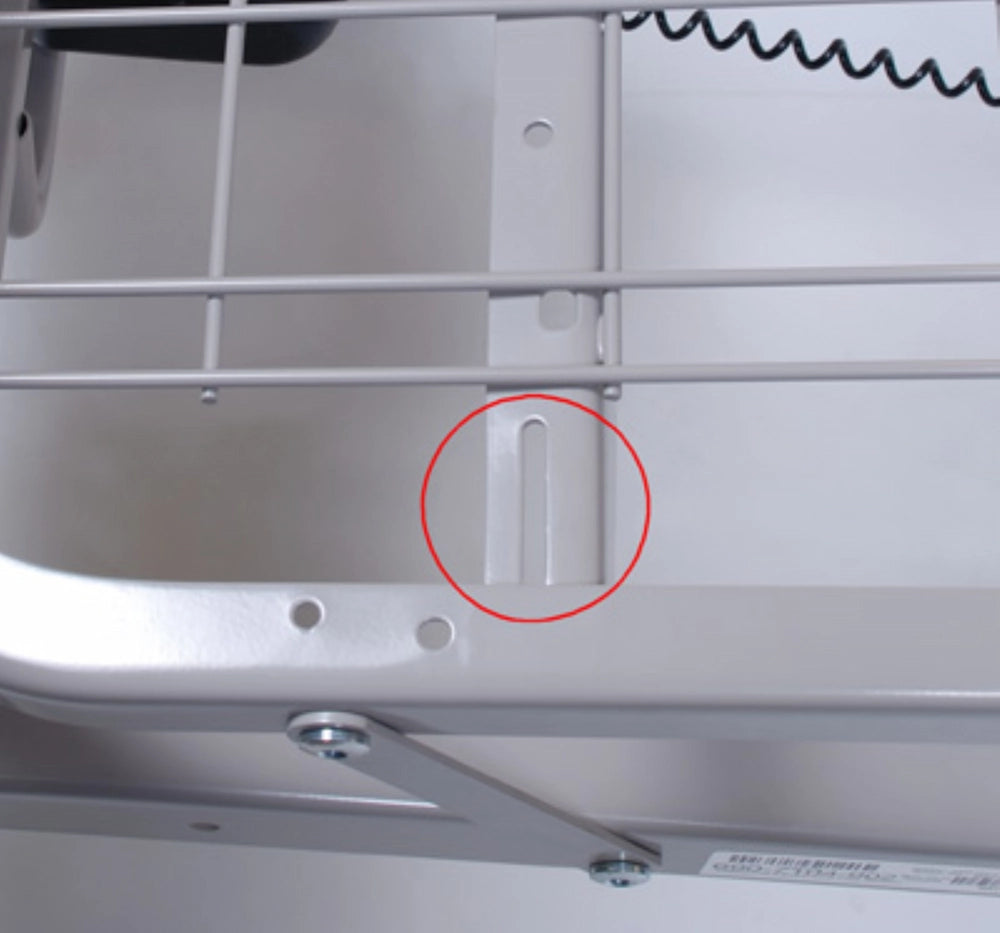

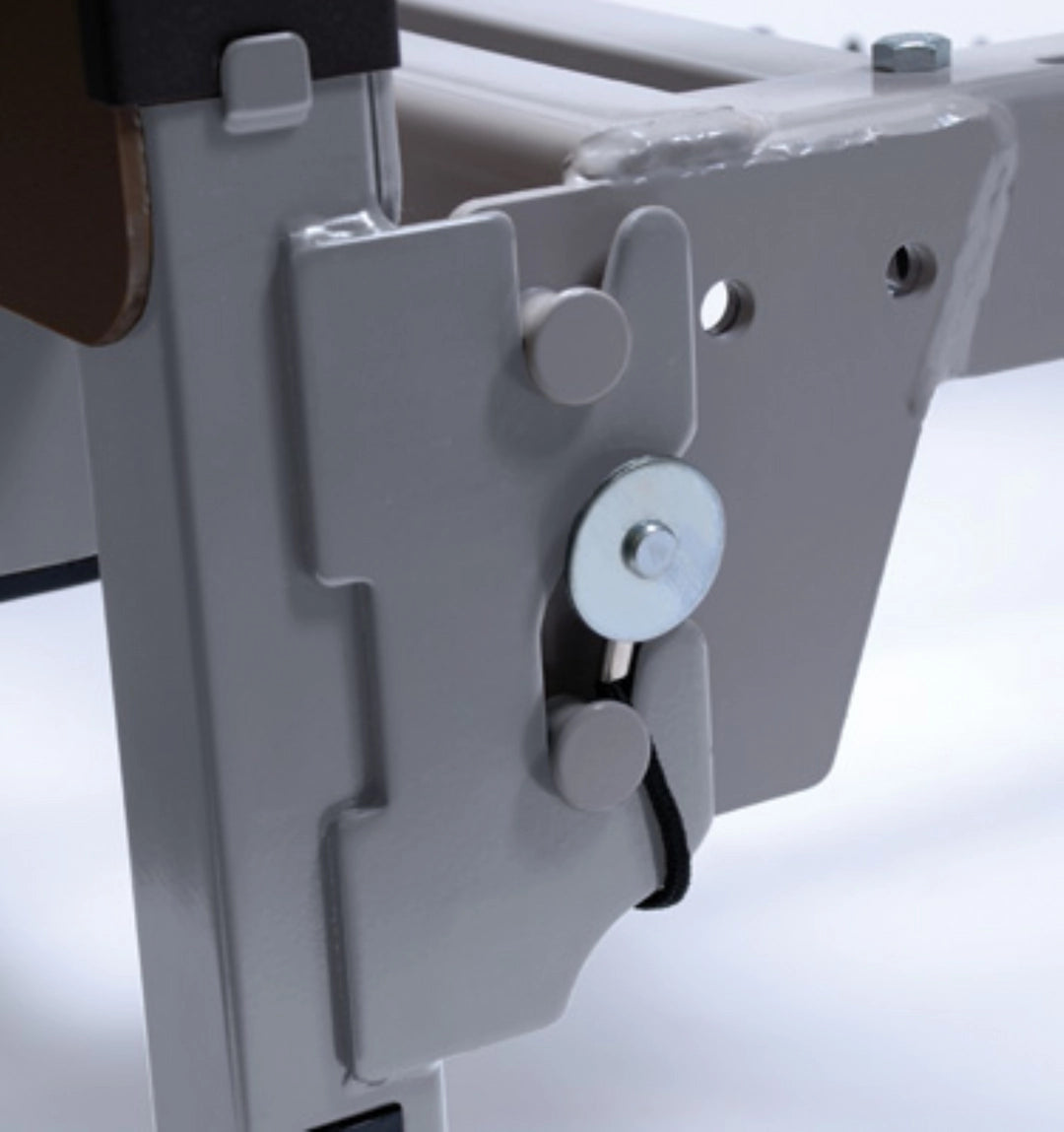

• Rail-ready design — slots ensure proper rail placement; locking pins with lanyards
• Optional extension kits — add 4" to head, foot, or both (84" or 88" total length)

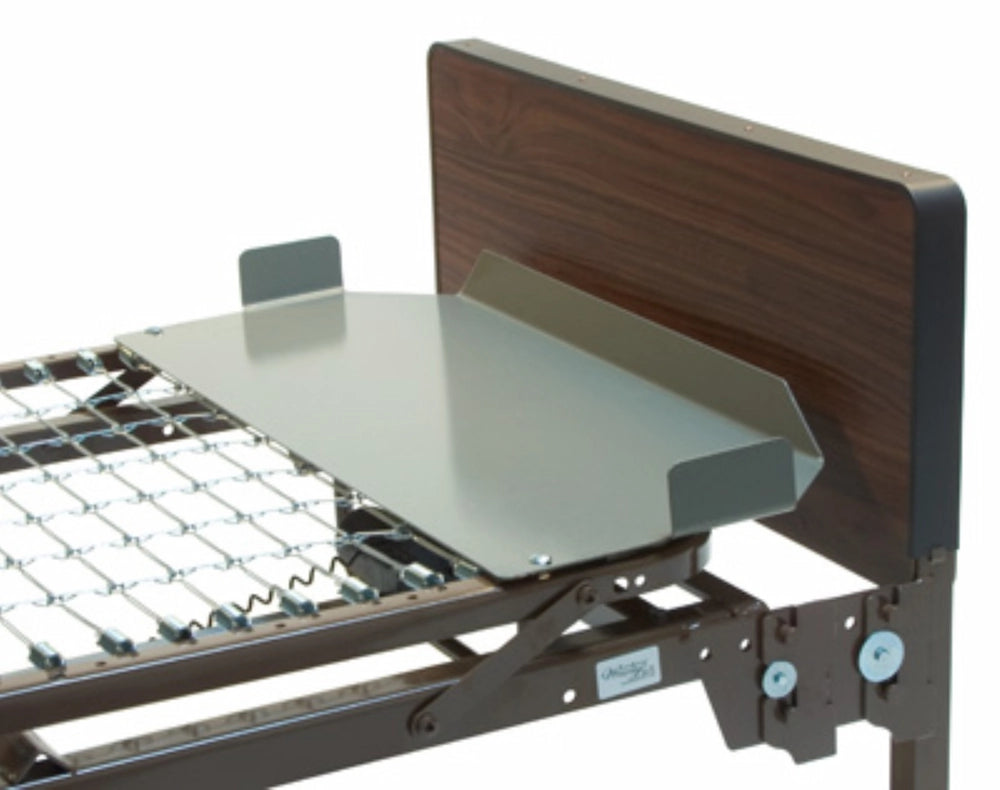

• Optional corner mattress retainers — available for added mattress security
• Patient weight capacity — 350 lbs; total capacity (patient + mattress + rails + accessories) 450 lbs
• Bed height range — 15" min to 24" max (at deck level)
• Lift range — Head 60°, Knee 30°
• Overall bed size — 87" L × 36" W (standard)
• Total assembled weight — 166 lbs (bed + motor only)
• Two-year warranty — covers defects in workmanship, materials, mechanical components, frame, and electronics

Specifications:

Variants:

Contents:

General Information:

• Condition: New – Made to order or in-stock availability varies (contact for current status). Drop ships directly from vendor (Graham-Field / Lumex). Not cancellable, not returnable once processed.
• Shipping: Freight intensive heavy item (166 lbs assembled + packaging) – freight surcharge applies ($35 per bed/package for 1–2 units). Calculated at checkout; notify customer.
• Installation Tips: Easy 5-component assembly; no tools required for basic setup. Professional assembly recommended for clinical use. Optional extension kits and corner retainers available separately.
• Cleaning: Wipe frame and deck with mild soap or hospital-grade disinfectant; grid deck is easy to clean.
• Permissible Ambient: Indoor use; avoid extreme temperatures.
• Applications: Home care, long-term care, rehab, bariatric support, pressure ulcer prevention, caregiver-assisted positioning. Volume discounts available – call or email for orders of 10+ units.
