Protector PVC Acid-Digestion Laboratory Fume Hoods feature wash-down systems, integrated work surfaces, and drainage channels that allow for thorough rinsing after each use. The interior liners of these hoods, constructed from Type 1 unplasticized polyvinyl chloride (uPVC), are designed to withstand reactions caused by strong acids. These fume hoods are equipped with Lexan polycarbonate sashes recommended for applications involving acids such as hydrofluoric acid (though excluding perchloric acid); the Lexan material does not fog or degrade when exposed to hydrofluoric acid vapors.
New
Labconco 141610002 6 ft Protector PVC Acid Digestion Hood, 37.7 Inch Exterior Depth, w/2 Service Fixtures
by
Labconco
SKU: 141610002
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?

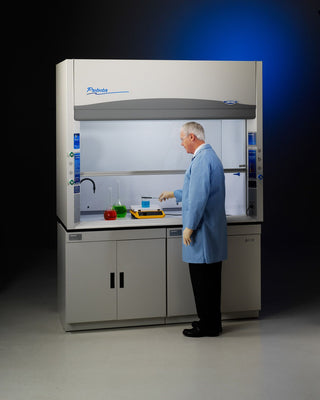

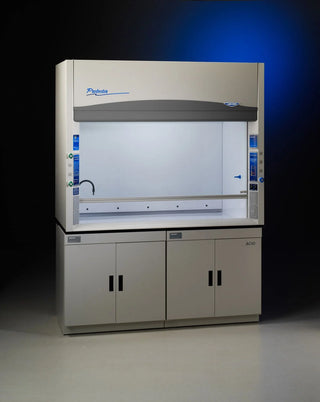

Labconco 141610002 6 ft Protector PVC Acid Digestion Hood, 37.7 Inch Exterior Depth, w/2 Service Fixtures and 1 GFCI duplex, 100-115V, 50/60Hz
Features
Features (All Models)
- By-pass airflow design and by-pass block
- Powder-coated stainless steel Eco-Foil air foil with Clean-Sweep airflow openings
- Glacier white, powder-coated steel exterior
- Cord-Keeper slots on left and right side of air foil
- Heat-welded unplasticized PVC liner (30.0" interior depth) with integral work surface, drainage trough and pre-set baffle(s). PVC withstands maximum continuous operating temperature of 140° F (60° C) and has a flame spread less than 25 per ASTM E84
- Black enamel-coated hardboard supporting surface
- Powder-coated aluminum sash handle with Clean-Sweep openings and Clean-Sweep slots on the powder-coated stainless steel sash tracks
- 1/4" thick Lexan polycarbonate vertical-rising sash with cable and pulley resists etching by hydrofluoric acid fumes
- Removable front and side panels and front access panels for access to plumbing and electrical wiring
- Pre-wired LED lighting with vapor-proof design and ADA-compliant light and blower switches. Lighting rated to 50,000 hours
- Built-in washdown system with internal piping and spray nozzles with maximum flow rate from 0.5-1.0 GPM
- Washdown fitting located on top of hood to facilitate connection to external wash rings (wash rings not included)
- 12.75" OD PVC exhaust connection(s)
Fixtured Models May Feature
- Two pre-plumbed service fixtures with forged brass valves, lower right side with brass tubing and plastic serrated hose connector for gas and lower left side with copper tubing and gray PVC swivel gooseneck faucet for cold water. Components for converting the lower right fixture to air or vacuum are provided. Inlet tubing is not provided.
- One pre-wired GFCI electrical duplex receptacle on lower right side and, on 8' models only, one additional pre-wired GFCI electrical duplex receptacle on lower left side
Required Accessories (Not Included)
- Dedicated remote PVC blower
- Wash rings and other ductwork
- Base cabinet or stand
Optional Accessories
- Service Fixture Kits
- Electrical Duplex Kits
- Guardian Airflow Monitor Kits
- Sash Stop Kits
- Ceiling Enclosure and Rear Finish Panel Kits
Compliance
- SEFA 1
- NFPA 45
- ASTM E84-09C
- ASHRAE 110
- ANSI Z9.5
- SEFA 8
- CFR 29, Part 1910
- UL 61010-1
- CAN/CSA C22.2 No. 61010.1
- UL 1805
Product Specifications
| Weight | 570.0 |
| Dimensions | 72.0" w x 37.7" d x 59.0" h |
| Electrical Requirements | 115 volts, 50/60 Hz |
| Metric Dimensions | 182.9 x 95.8 x 149.9 cm |
| Metric Weight (kg) | 258.5 |
| Blower Requirements | Remote Blower Required (Standard) |
| Electrical Duplexes | 1.0 |
| Explosion-proof | Standard (Not Explosion-Proof) |
| Lighting | LED |
| Nominal Width | 6' (182.88 cm) |
| Style | Benchtop |
| Conformance | ANSI Z9.5, ASHRAE 110, ASTM E84, CAN/CSA C22.2, CFR 29, NFPA 45, SEFA 1, SEFA 8 (cabinet Surface Finish), UL |
| Product Subcategory | Acid Digestion |
| Enclosure Height | 59.0" |
| Service Fixtures | 2.0 |
